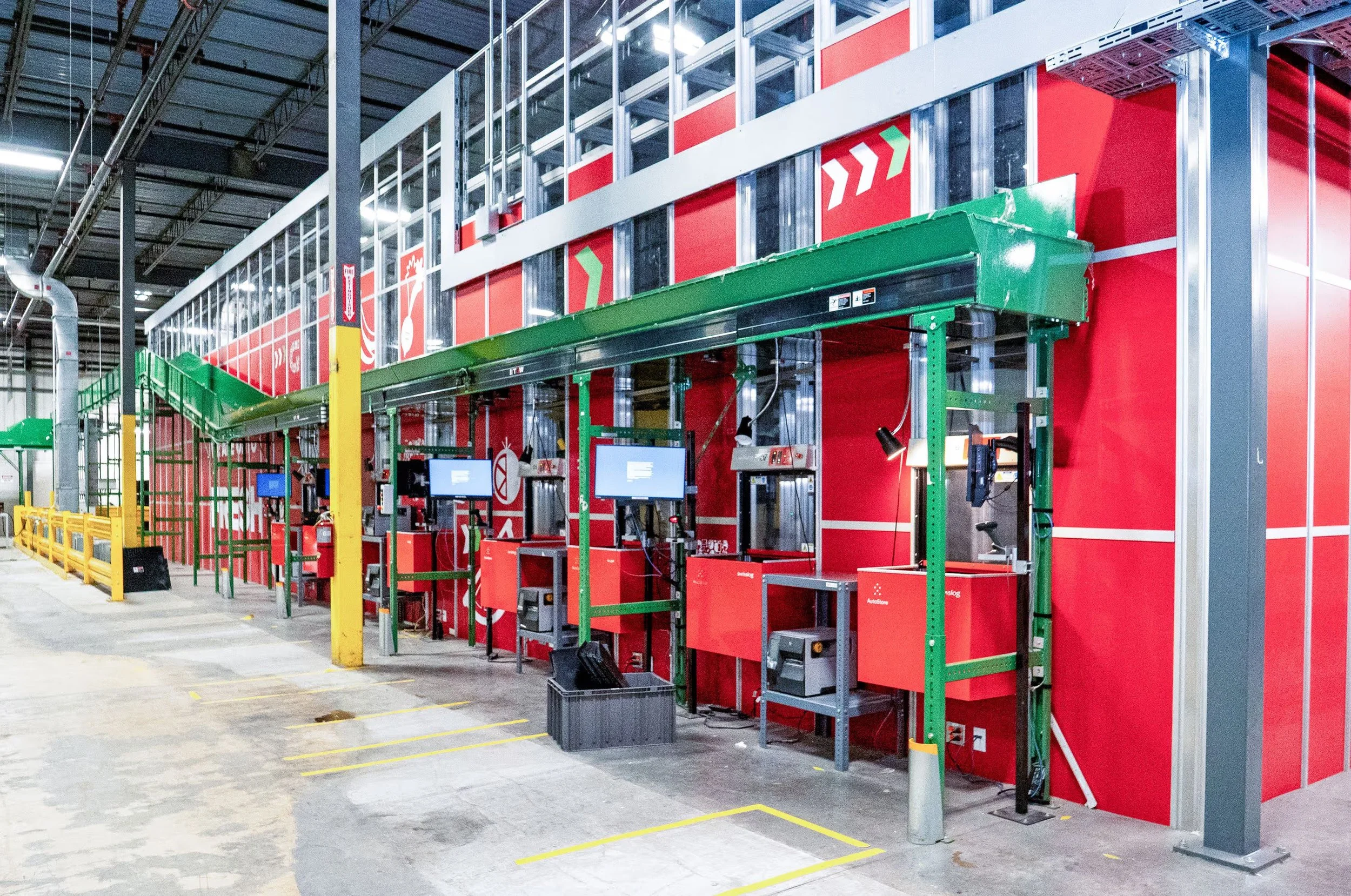

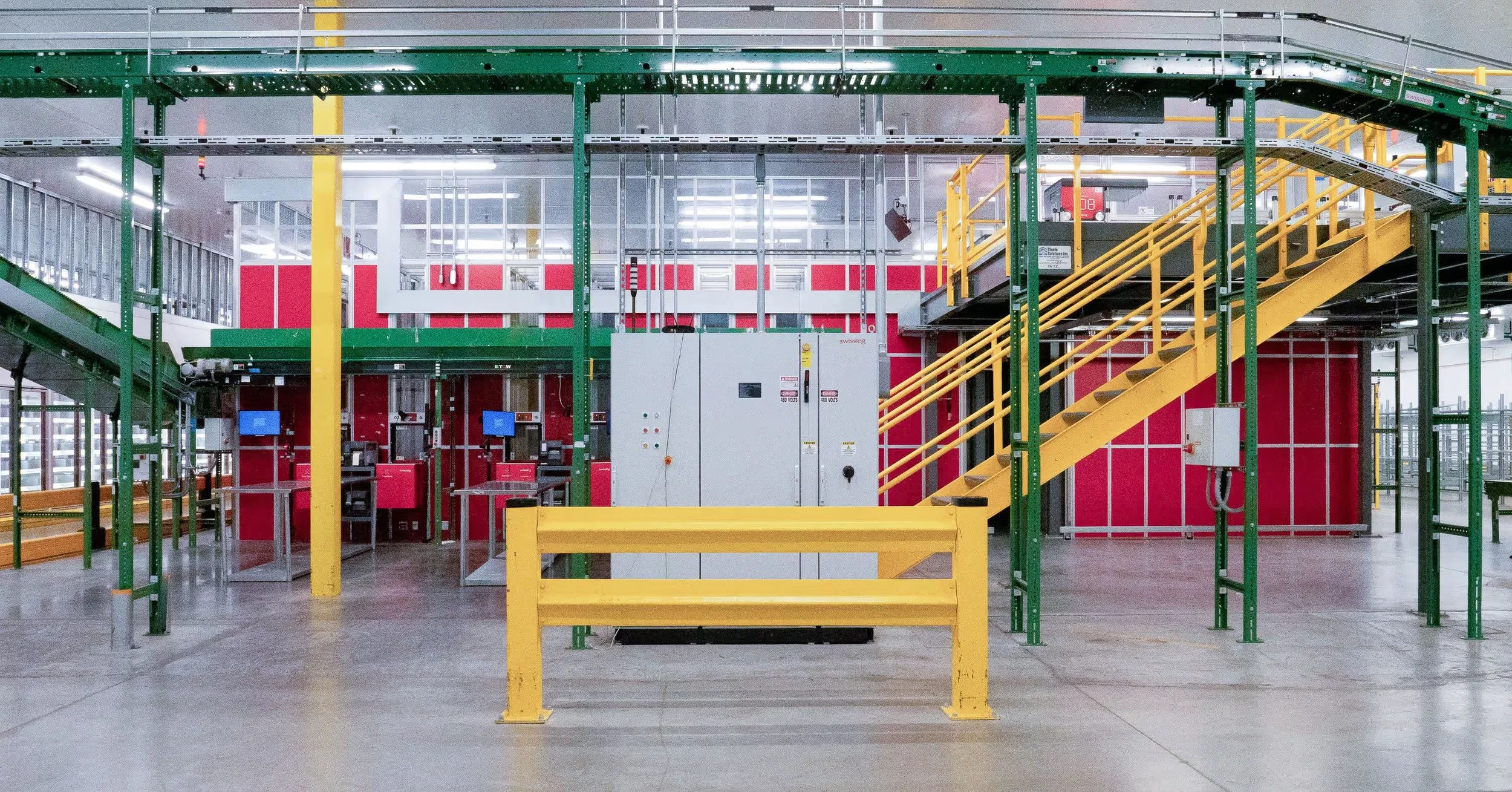

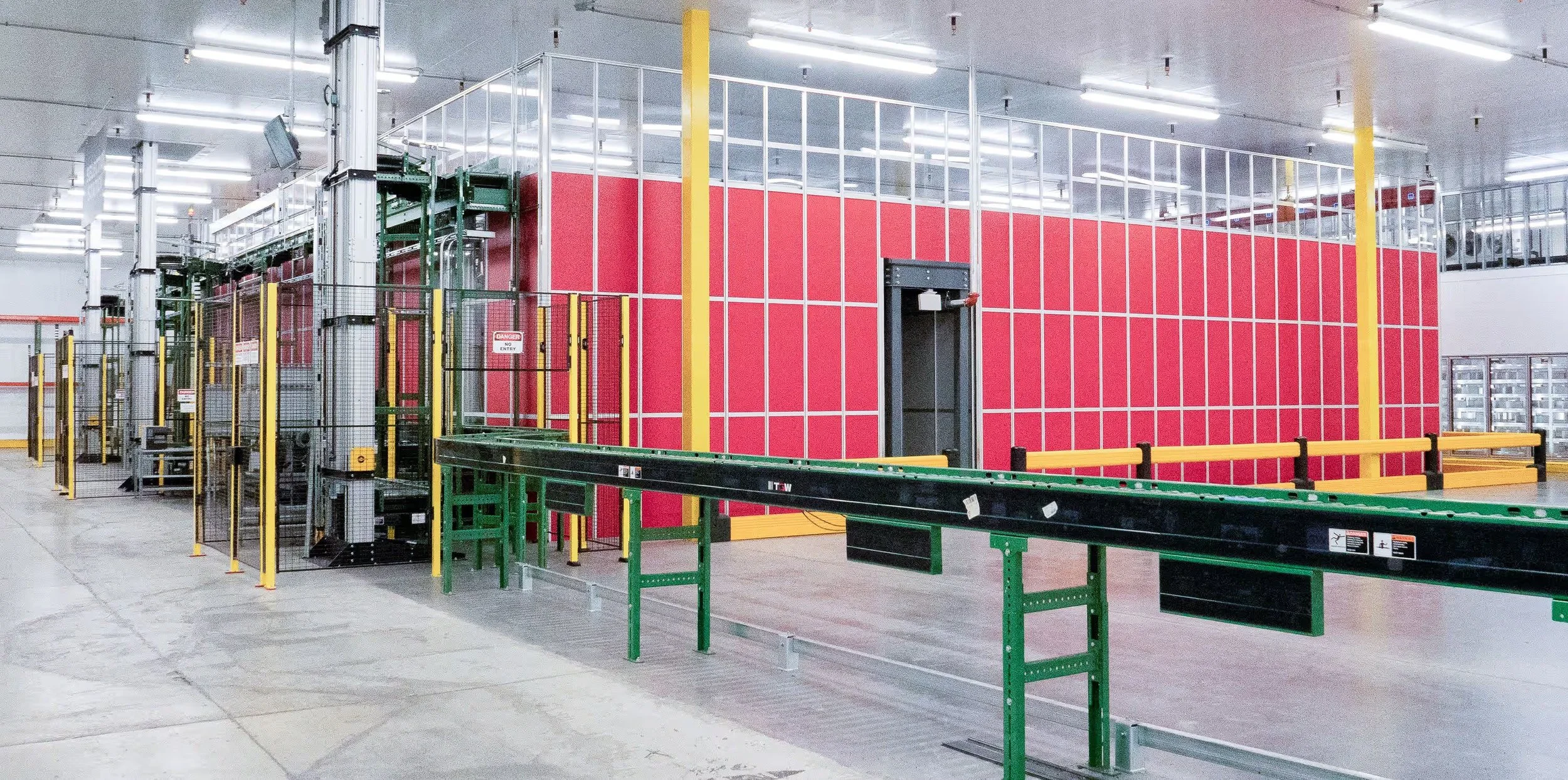

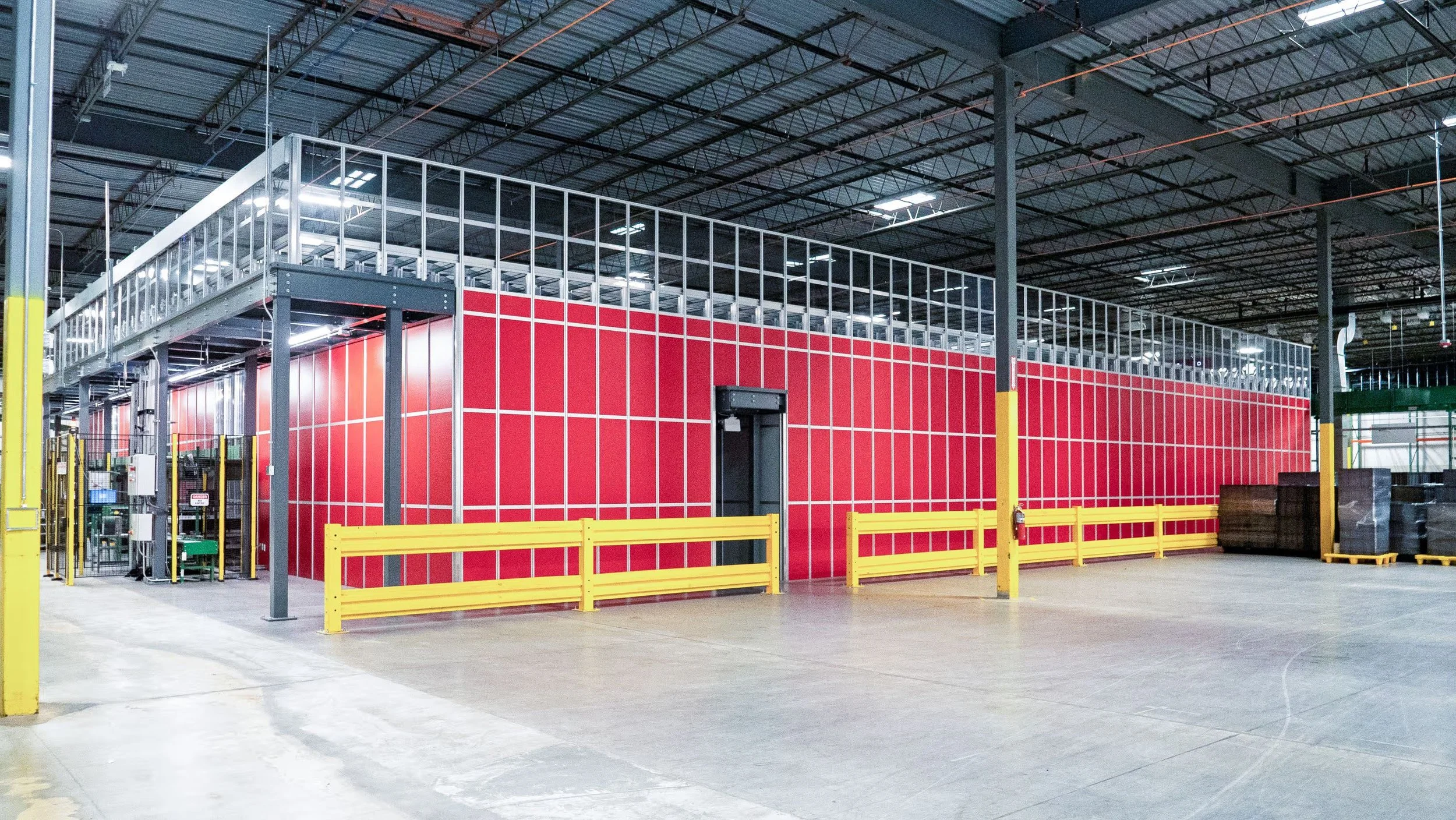

AutoStore System Available: 15,600 Bins and 46 Robots

Installed in 2021 this proven AutoStore system includes 15,600 bins, 46 Red Line robots,11 ports, 13 bins high.

For logistics companies, distributors, and manufacturers handling small parts, this is a rare opportunity to acquire a substantial used AutoStore system.

Installed in 2021, the system includes 15,600 bins, 46 Red Line robots, 39 charging stations, and 11 ports. It provides a proven foundation for organizations seeking to increase storage density, support higher order volumes, consolidate inventory flows, or accelerate their automation plans.

15,600 AutoStore bins

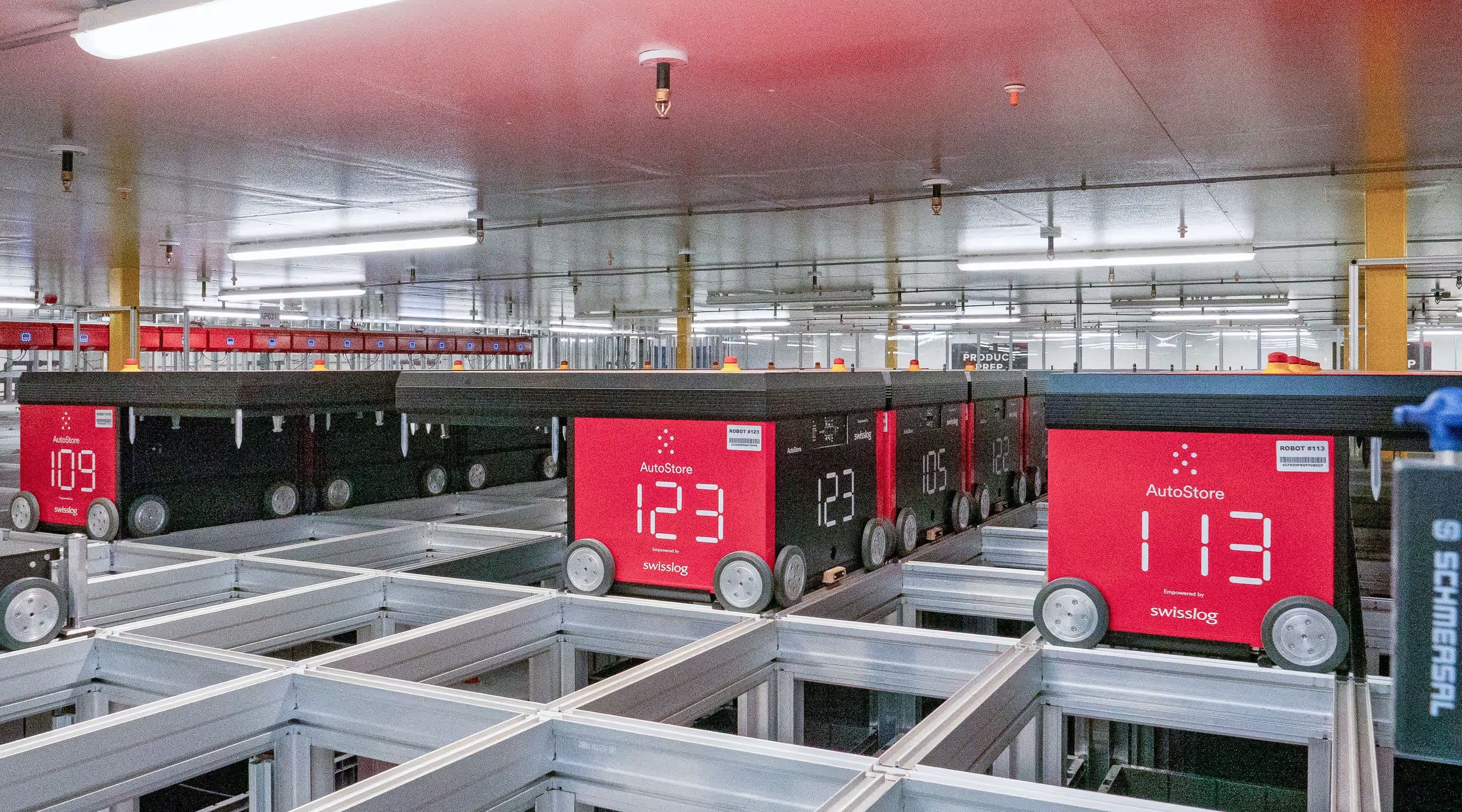

46 Red Line robots

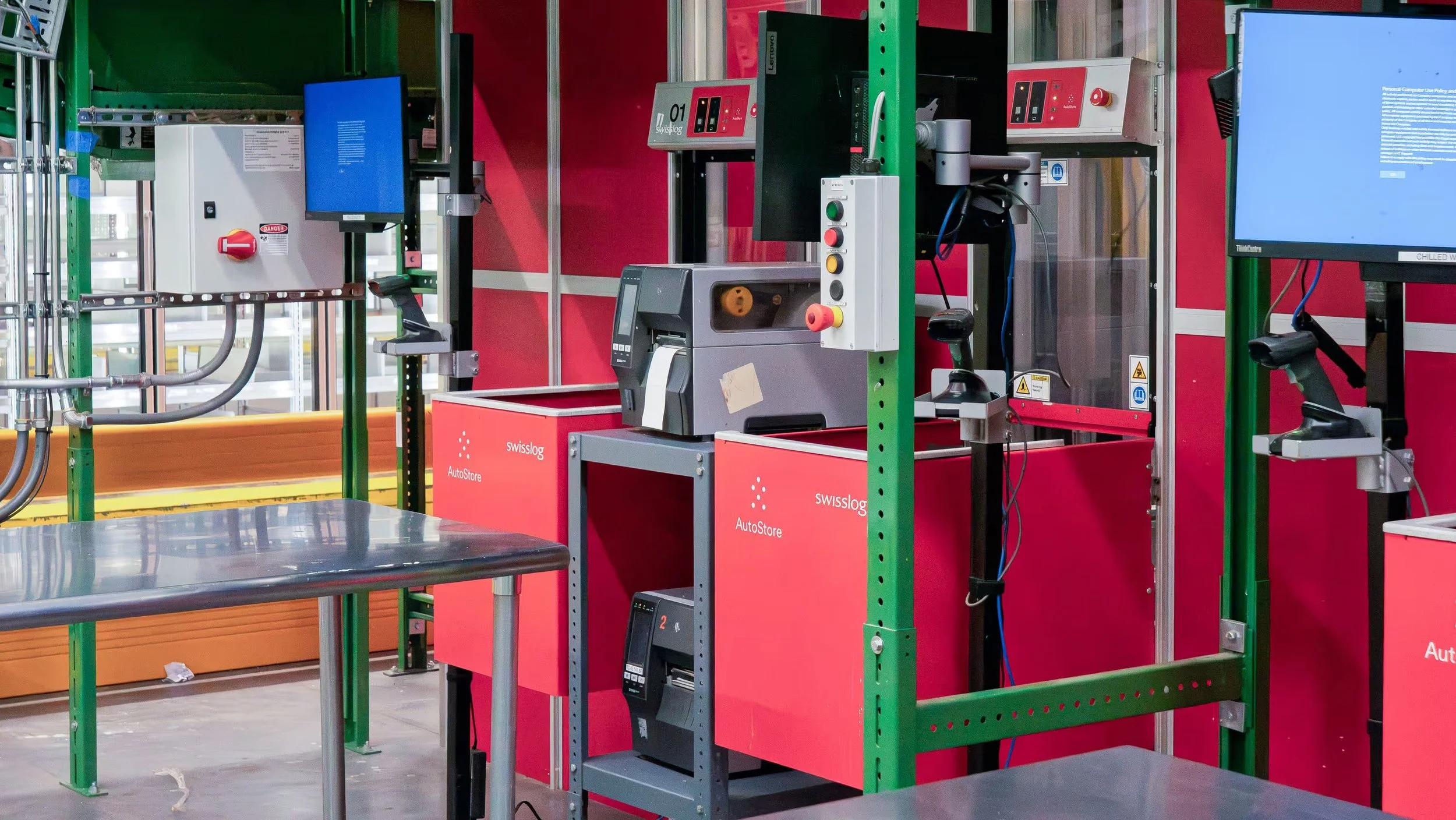

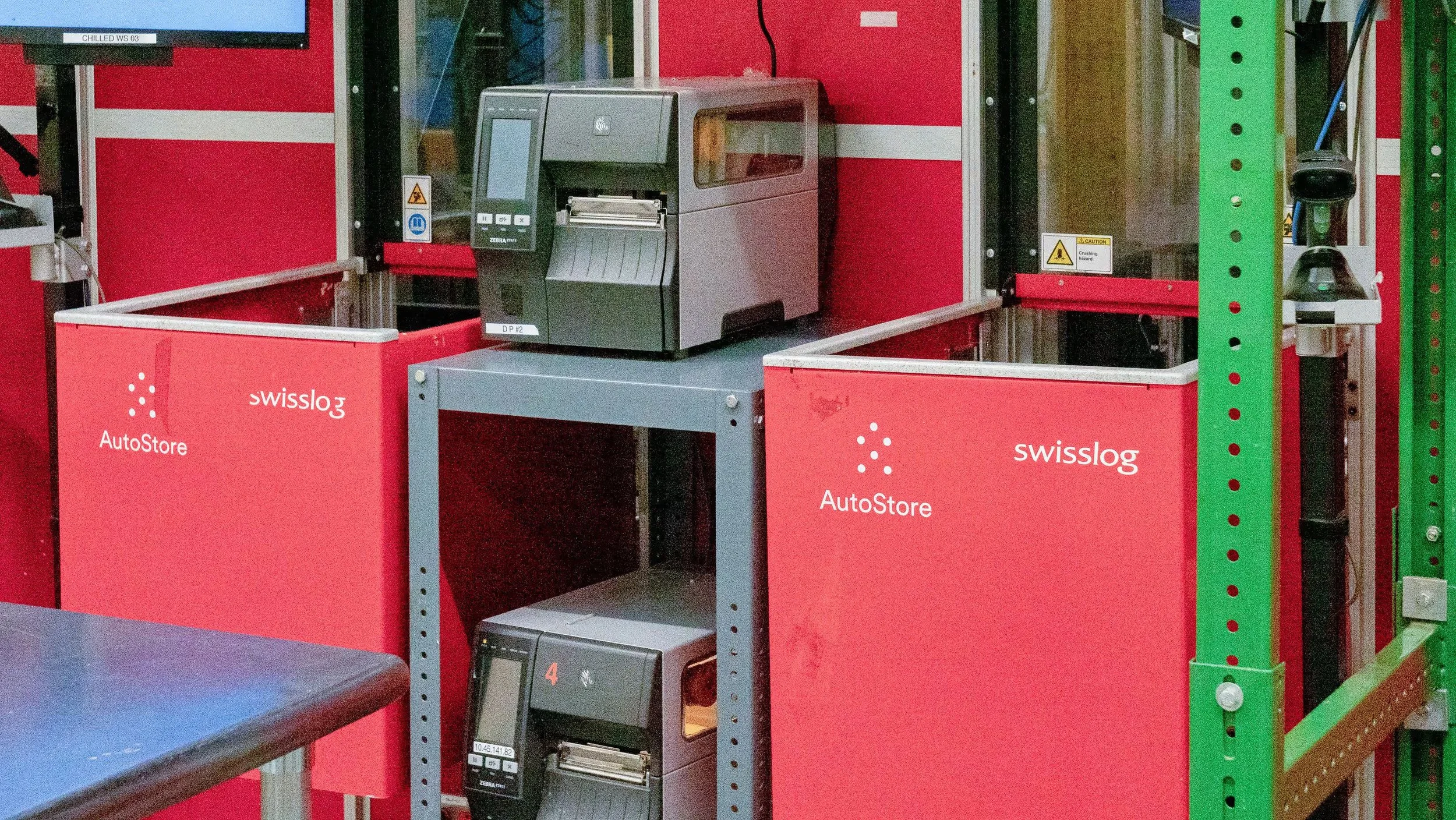

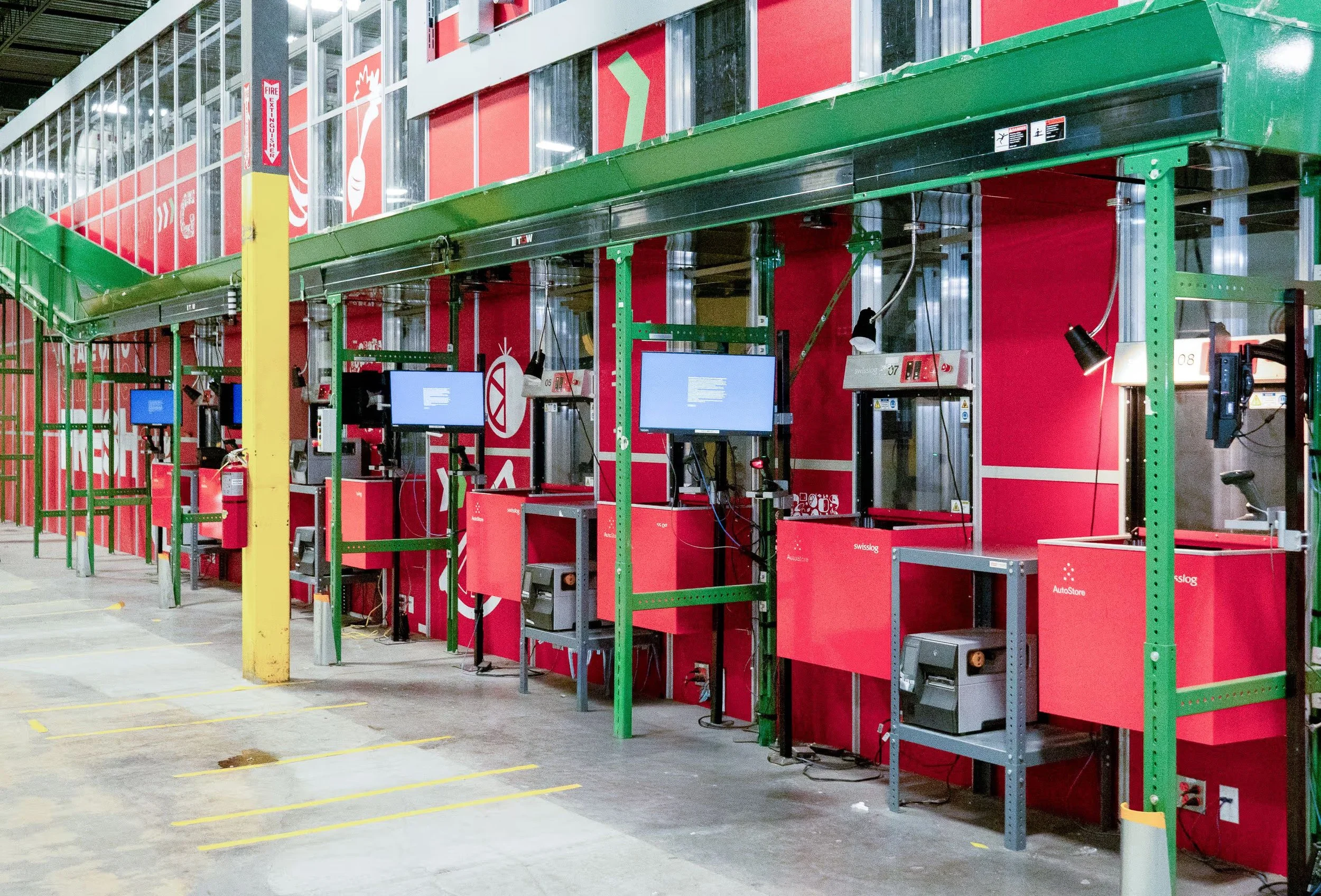

11 Ports installed

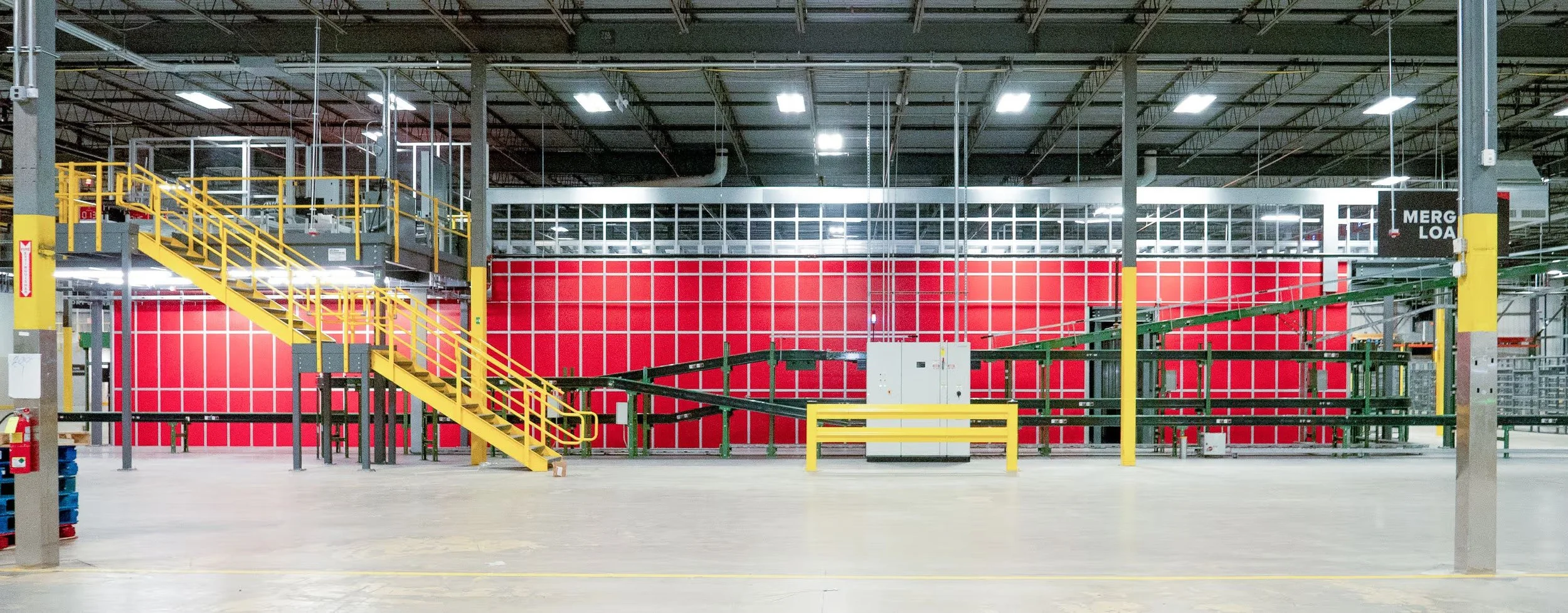

System Overview

Specification	Details
Model year	2021

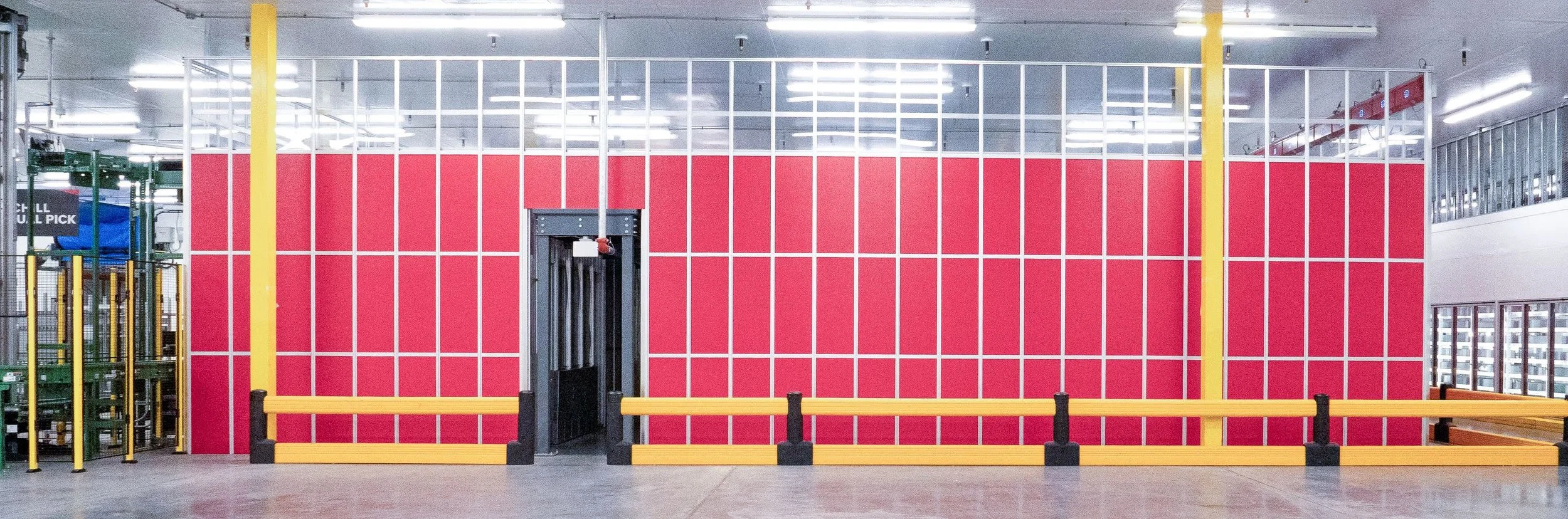

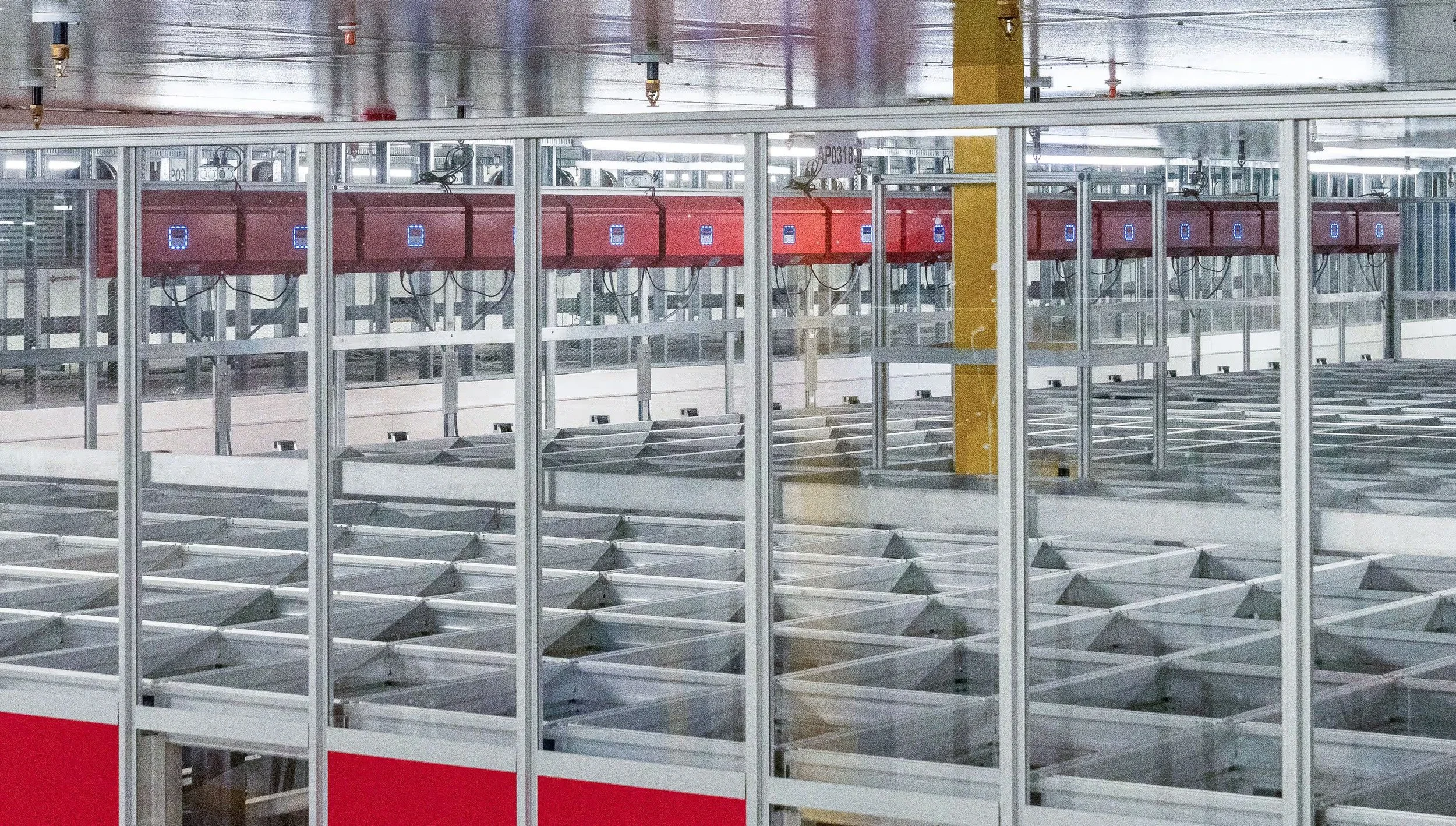

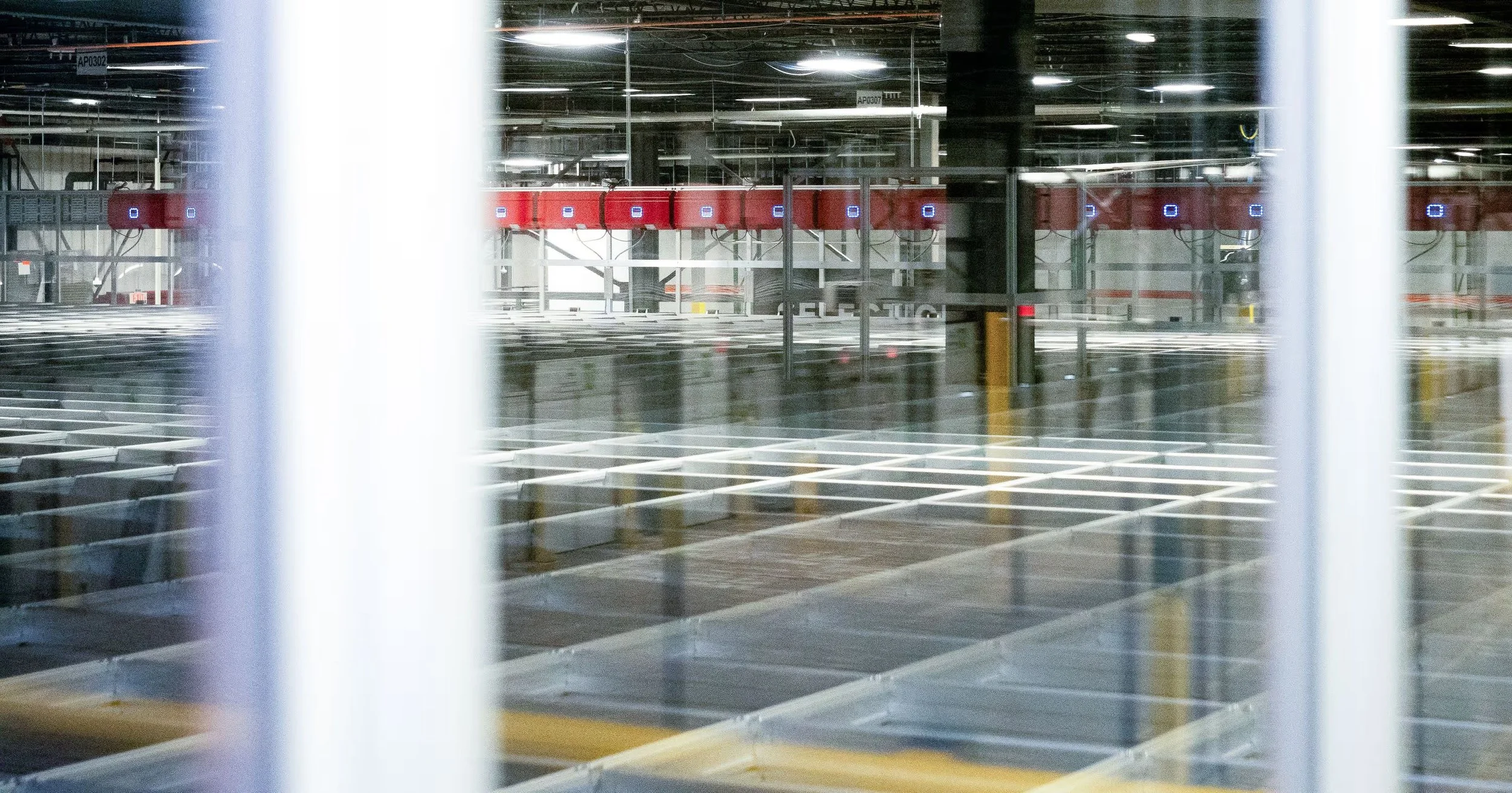

Grid type	Double-Double
Grid length	Approximately 24.8 m
Grid width	Approximately 24.1 m
Grid height	Approximately 5.5 m
Number of bins	Approximately 15,600
Bin dimensions	600 × 400 × 330 mm

Robots, Charging and Ports

Component	Quantity / Configuration

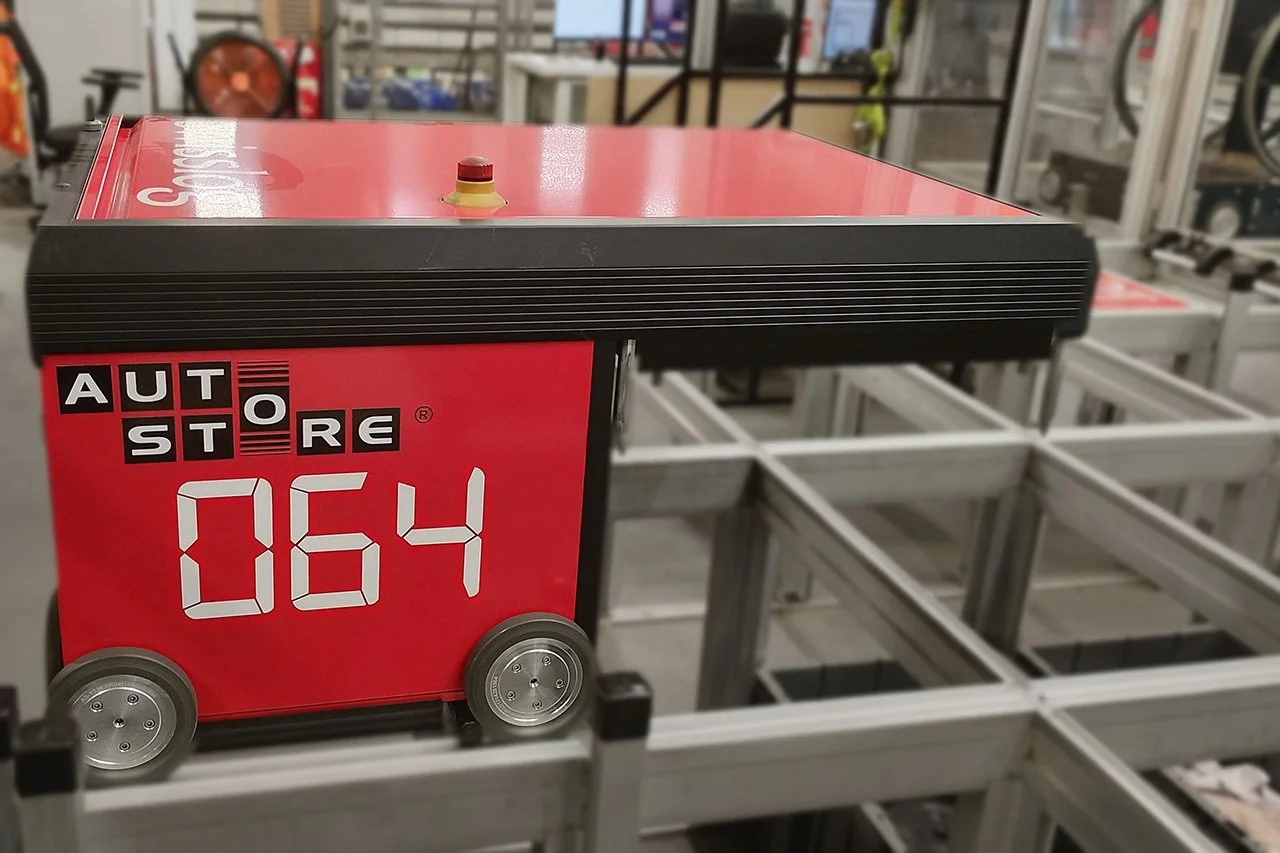

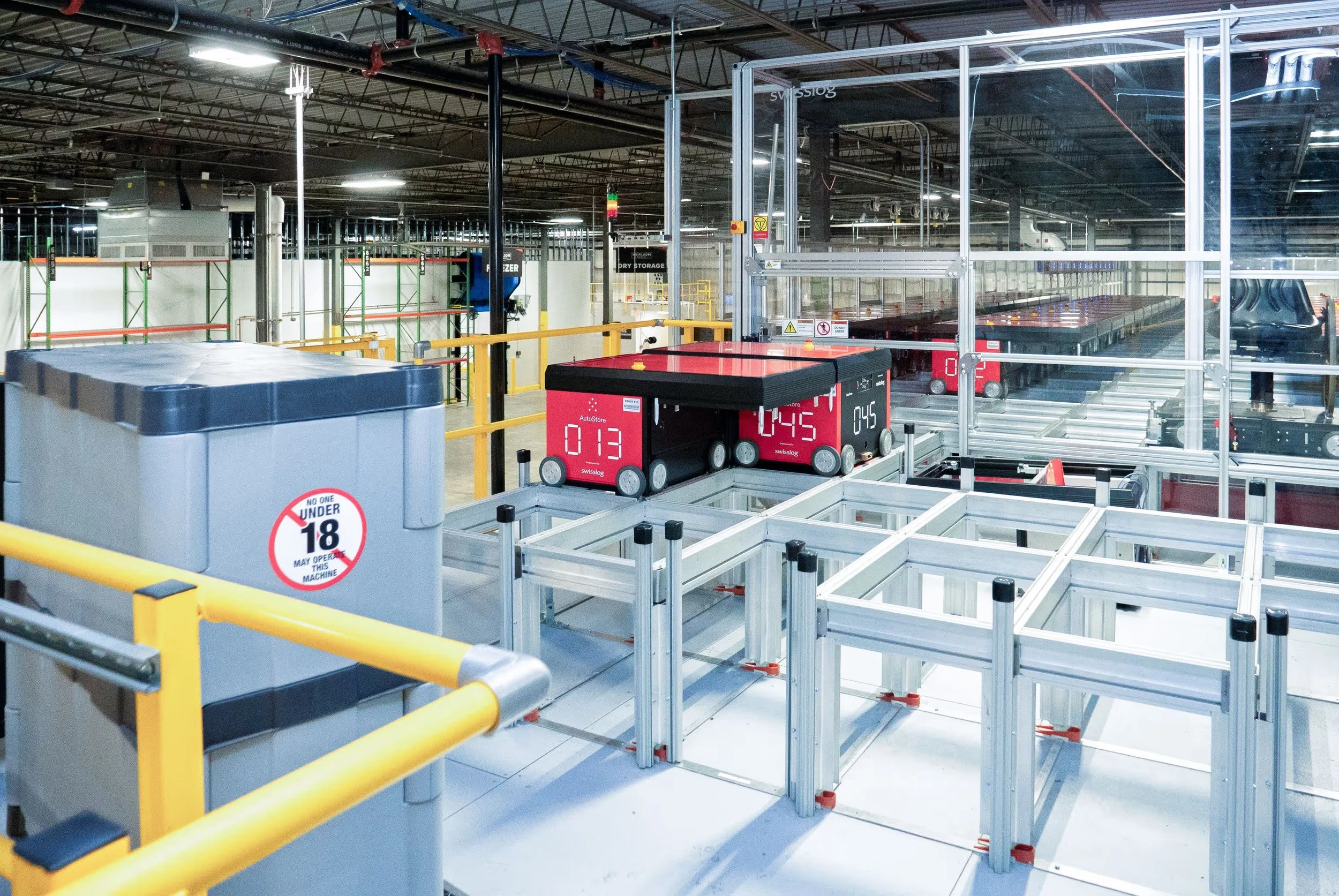

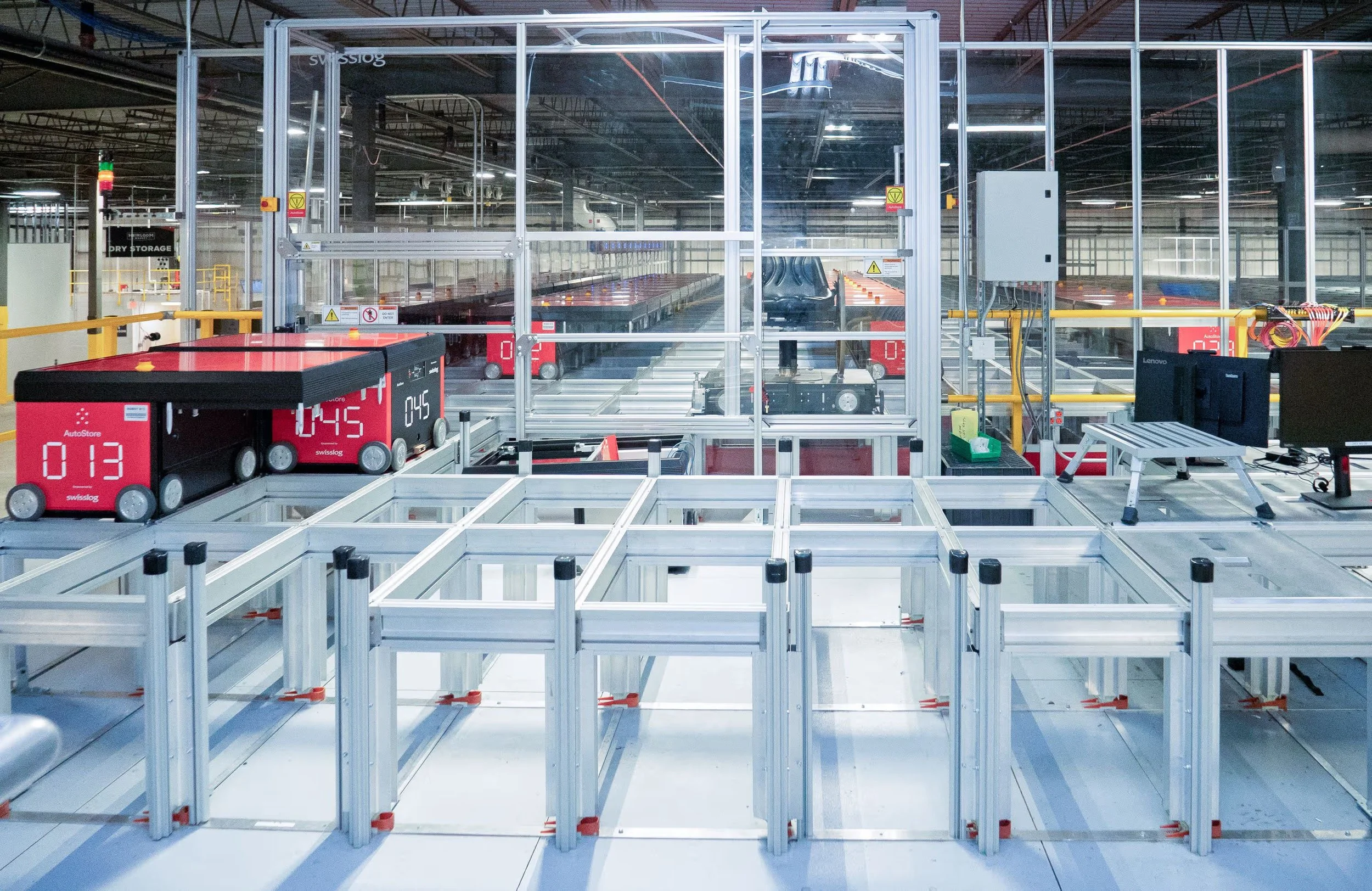

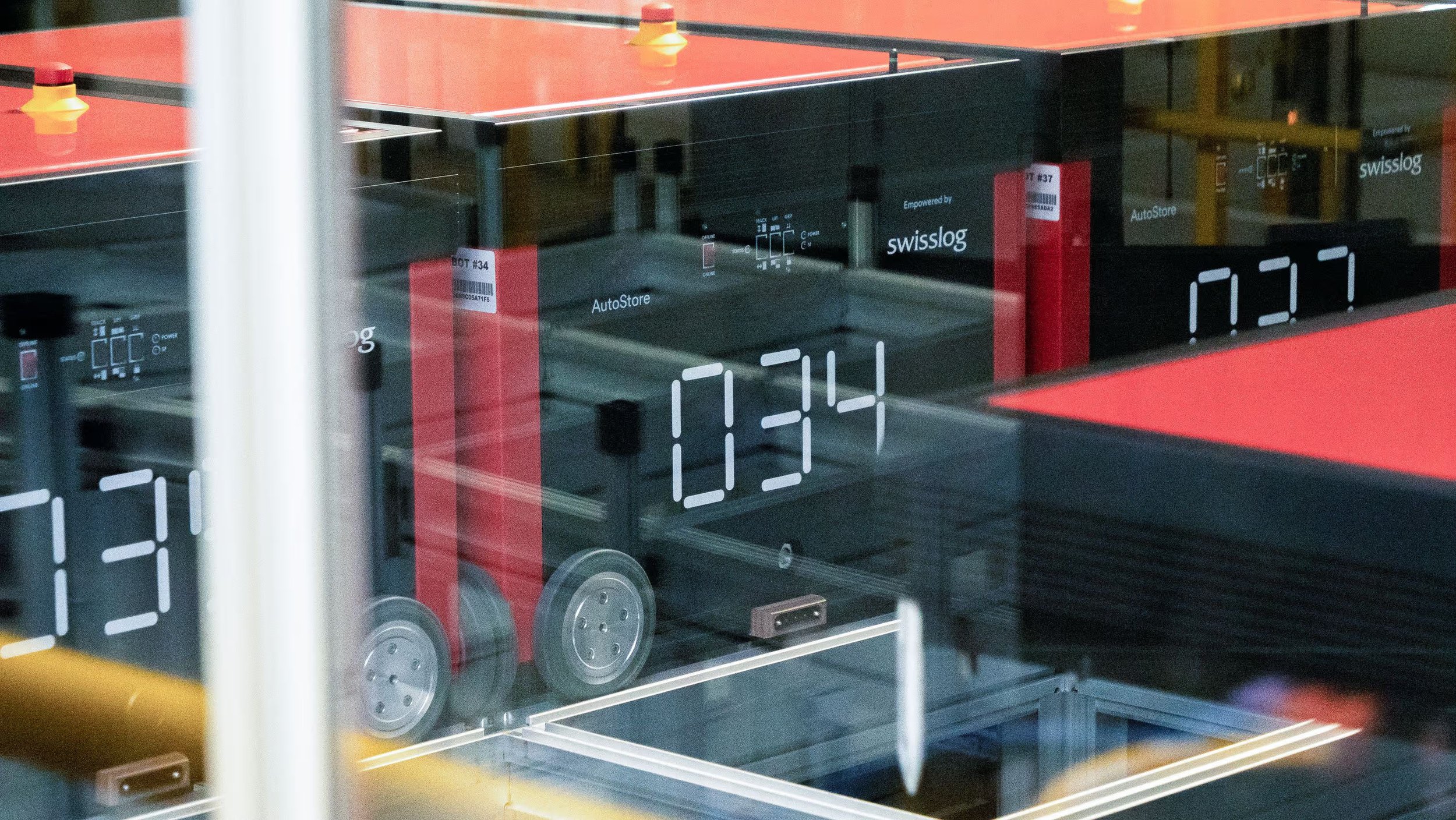

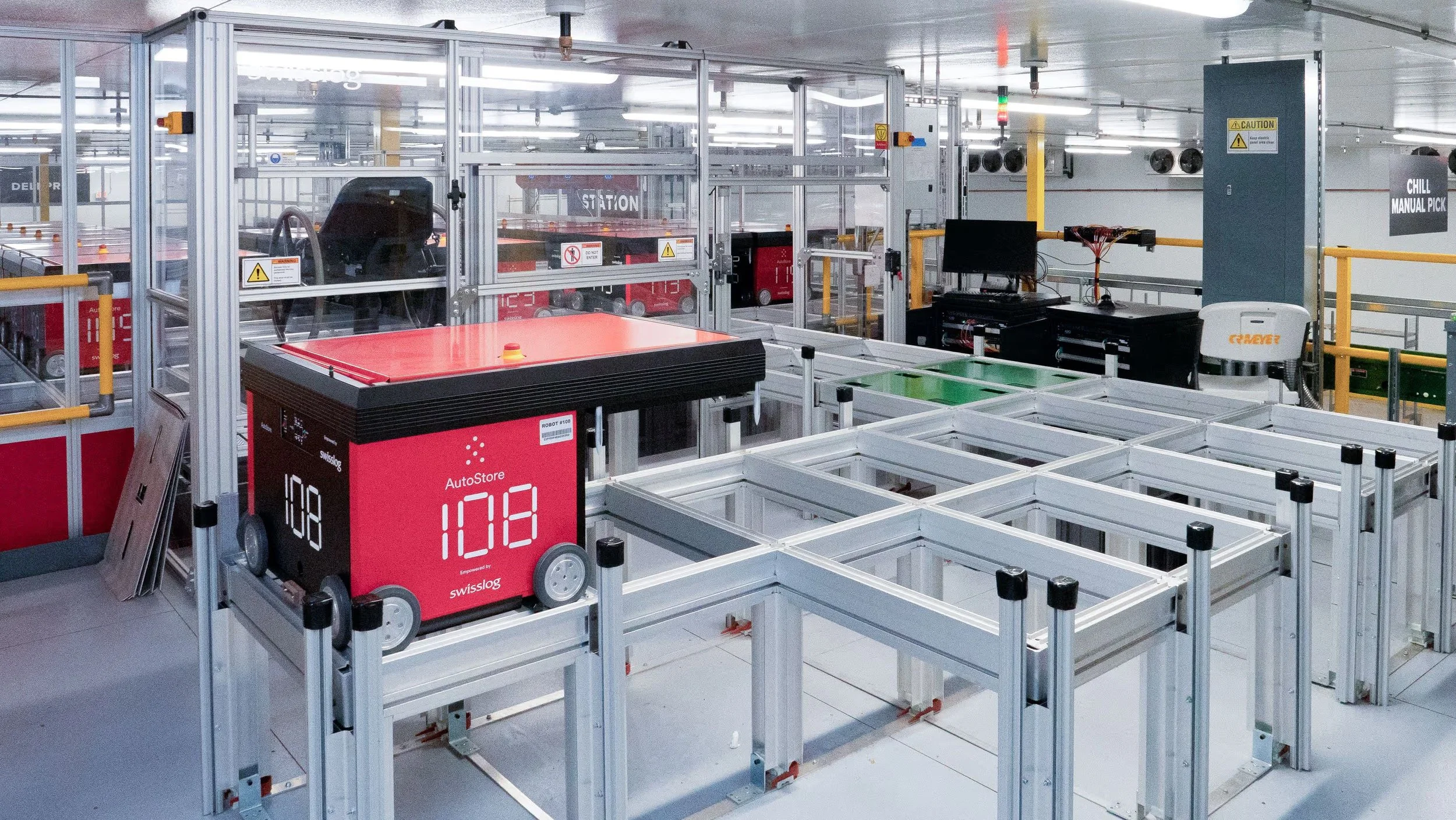

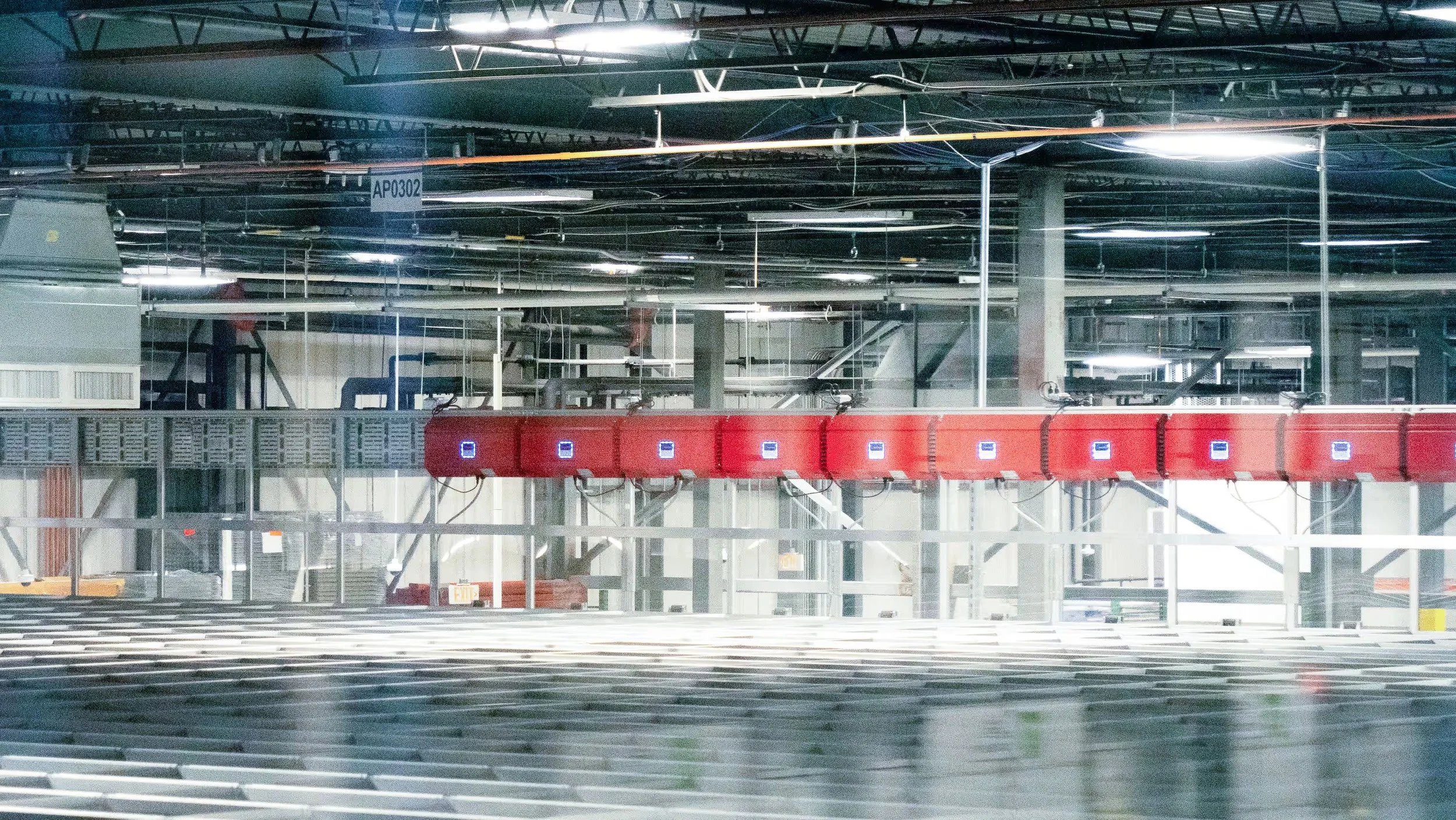

AutoStore Red Line robots	46
Charging stations	39

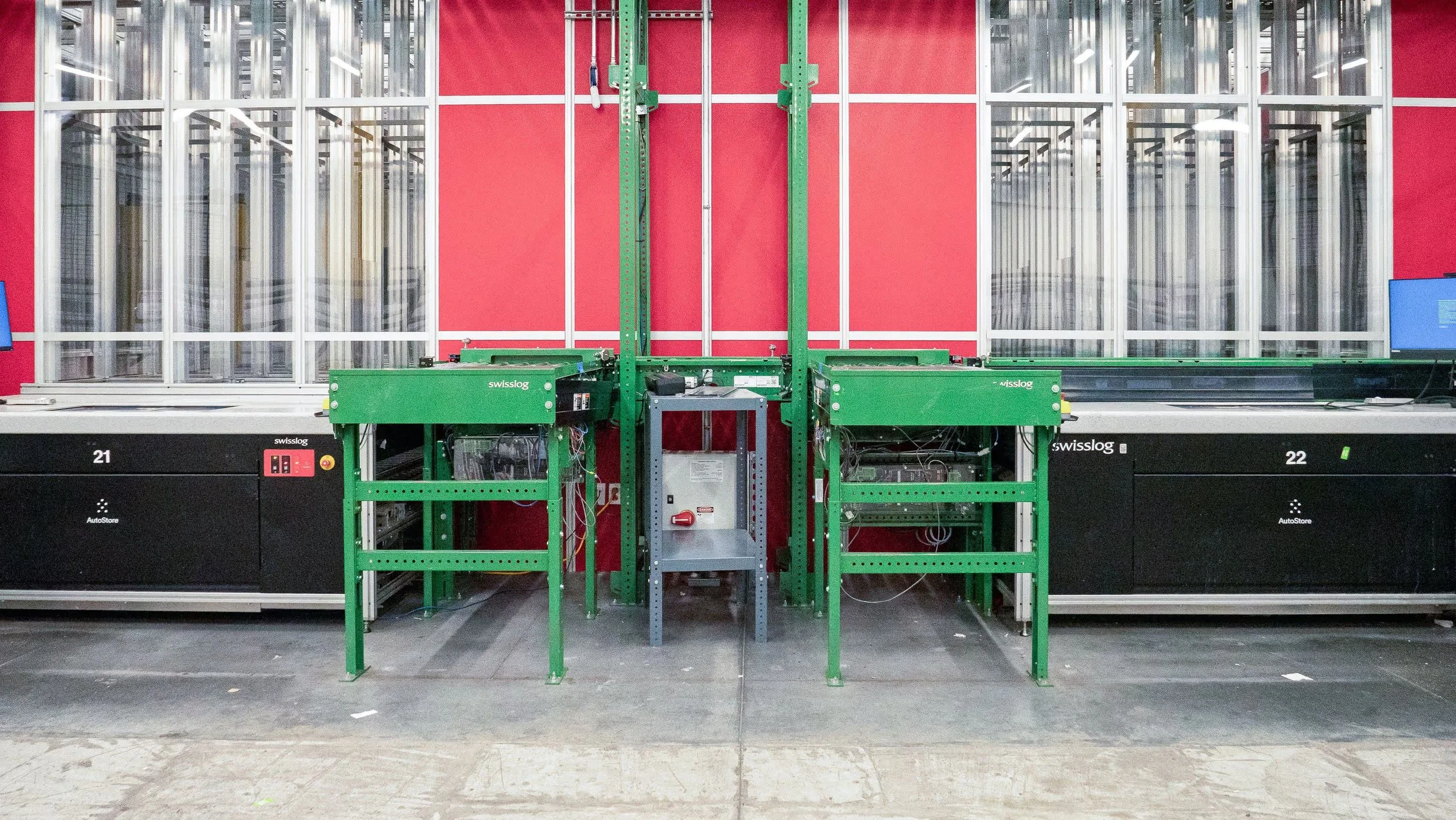

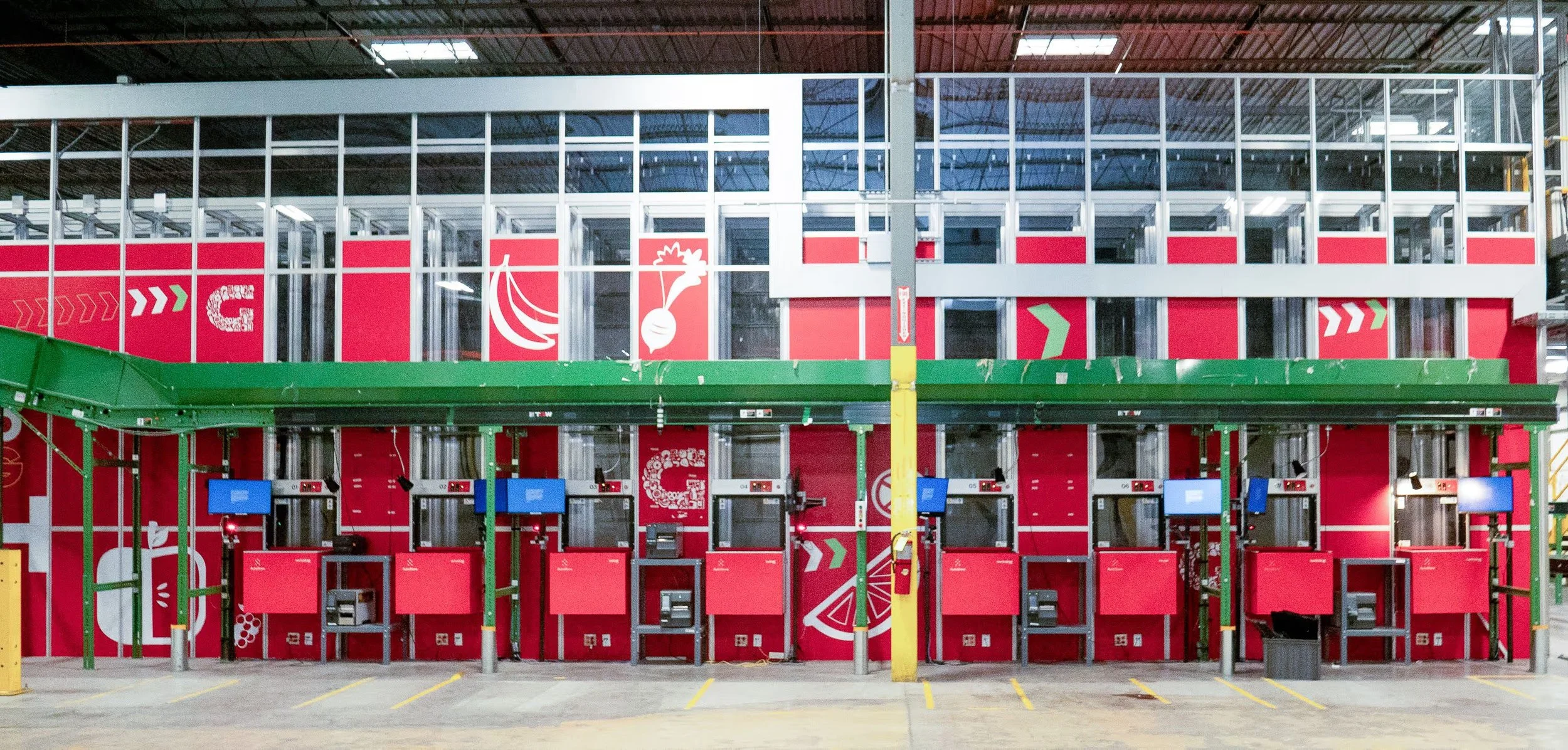

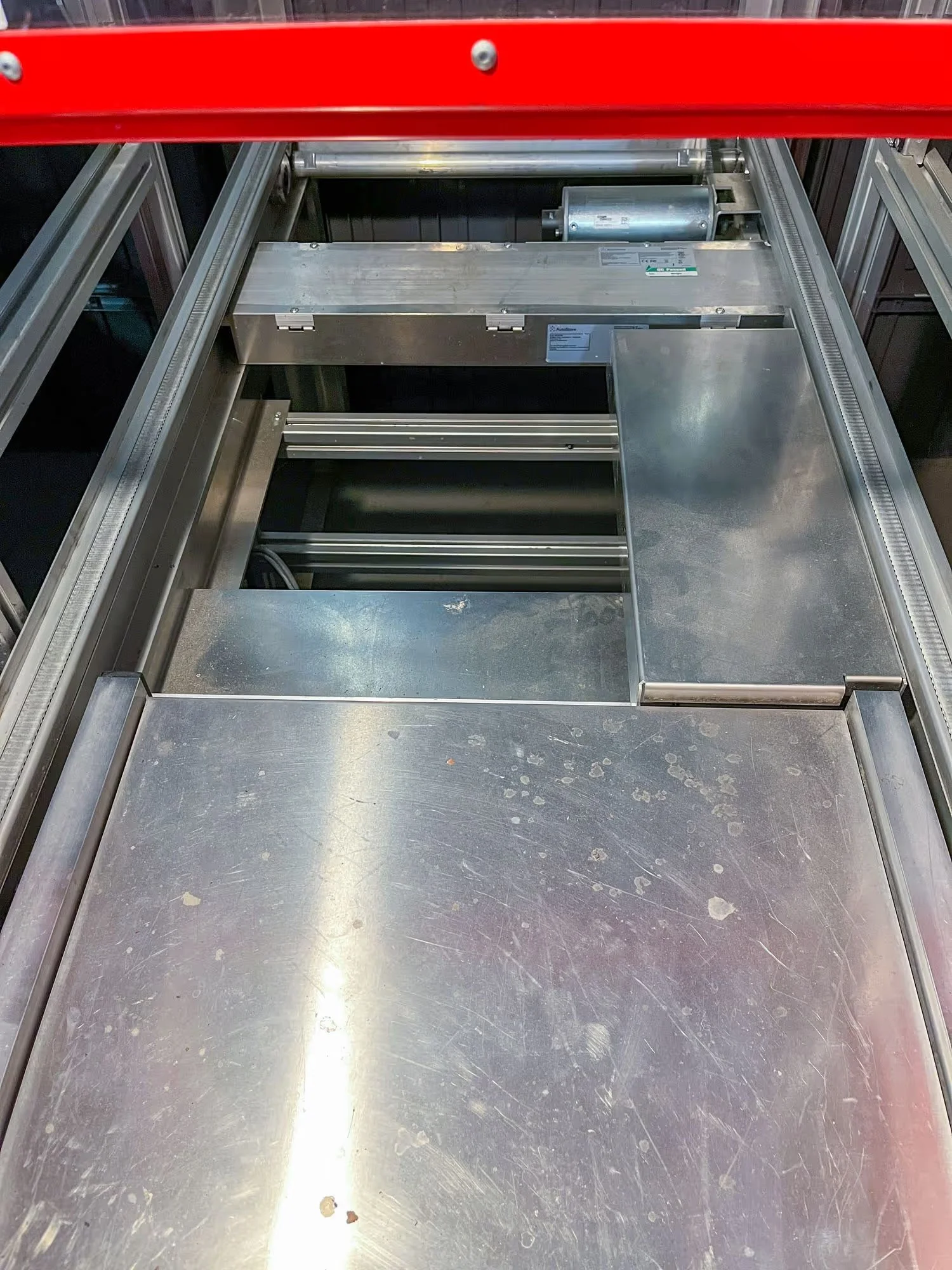

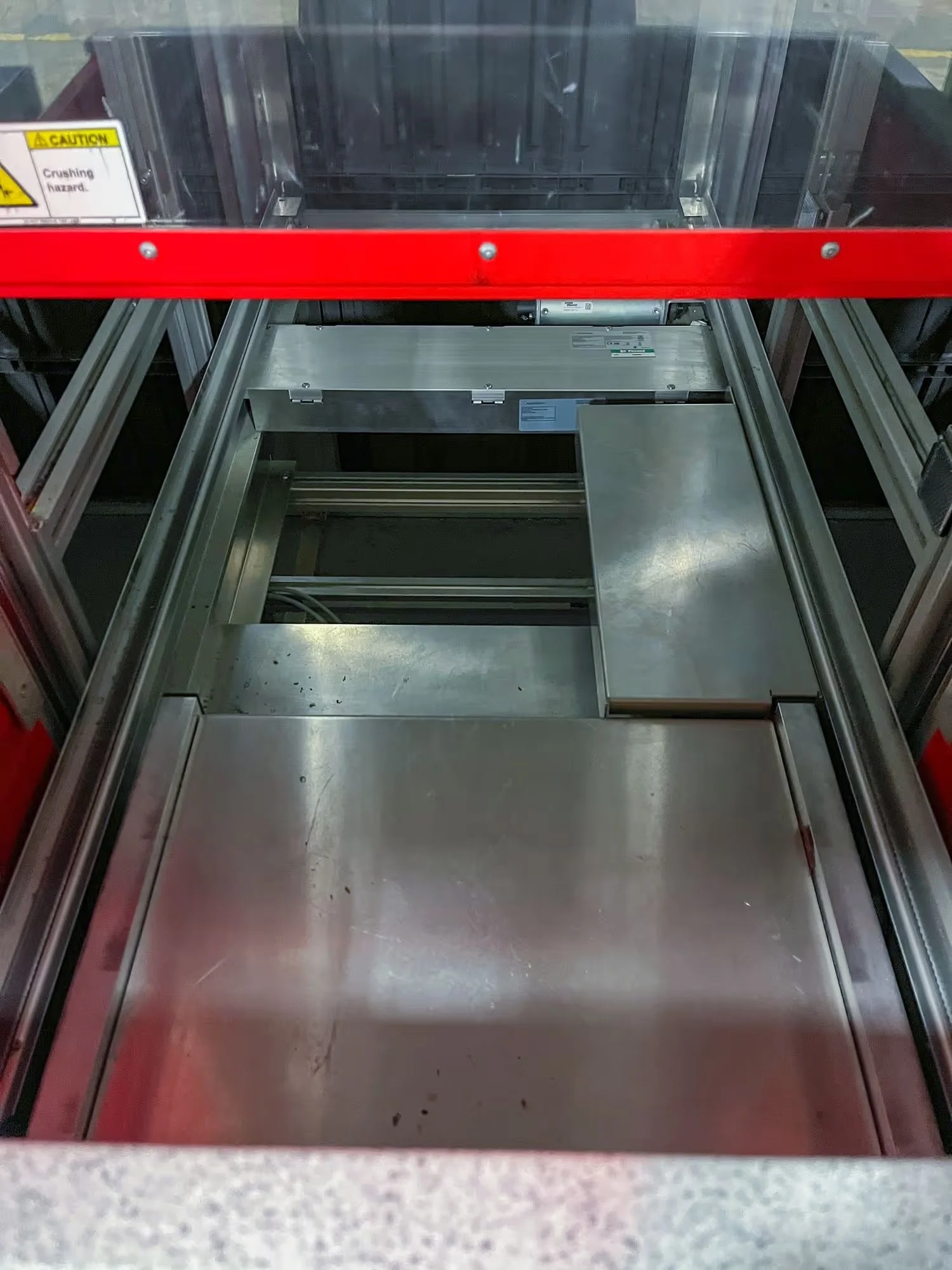

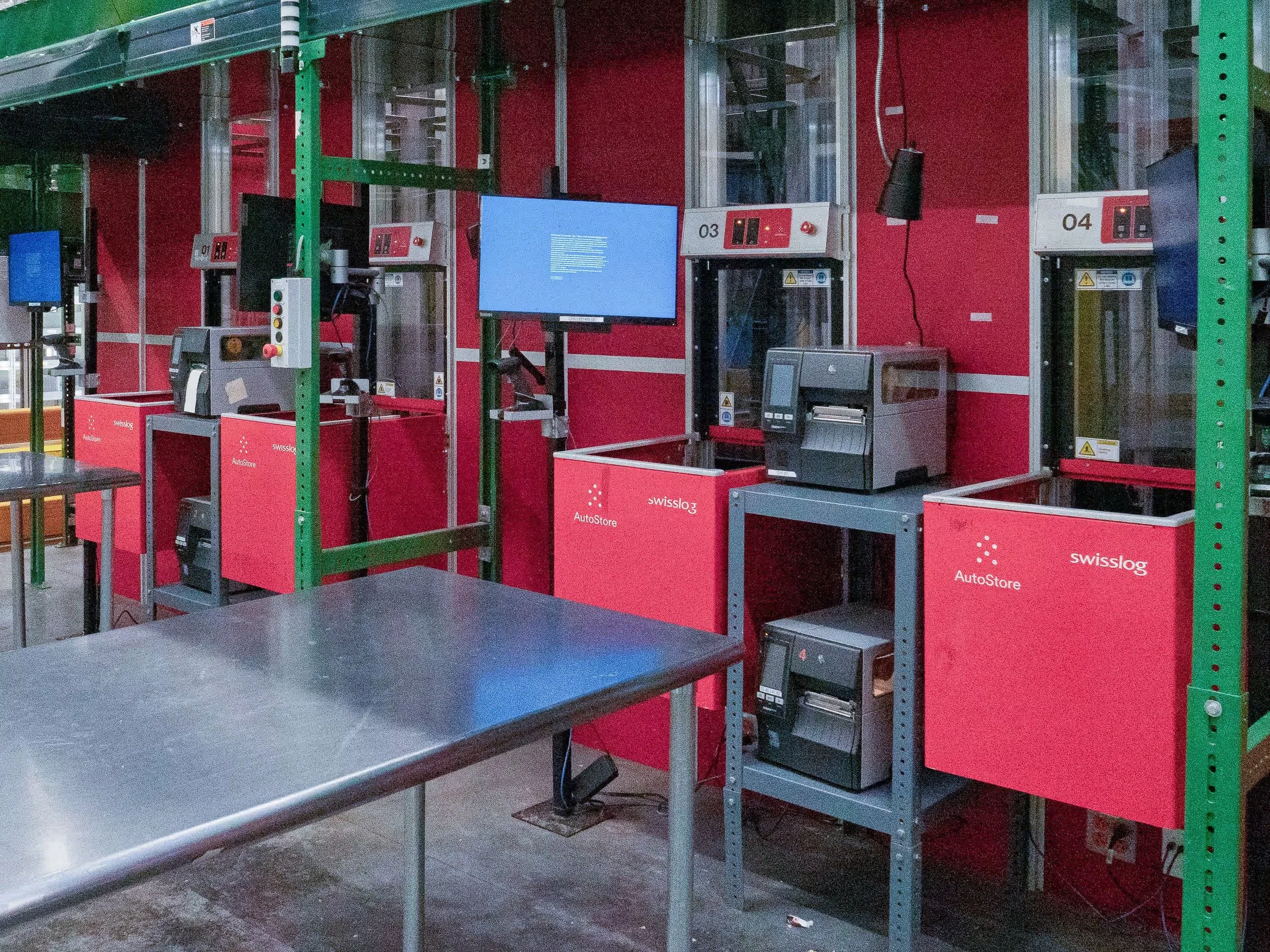

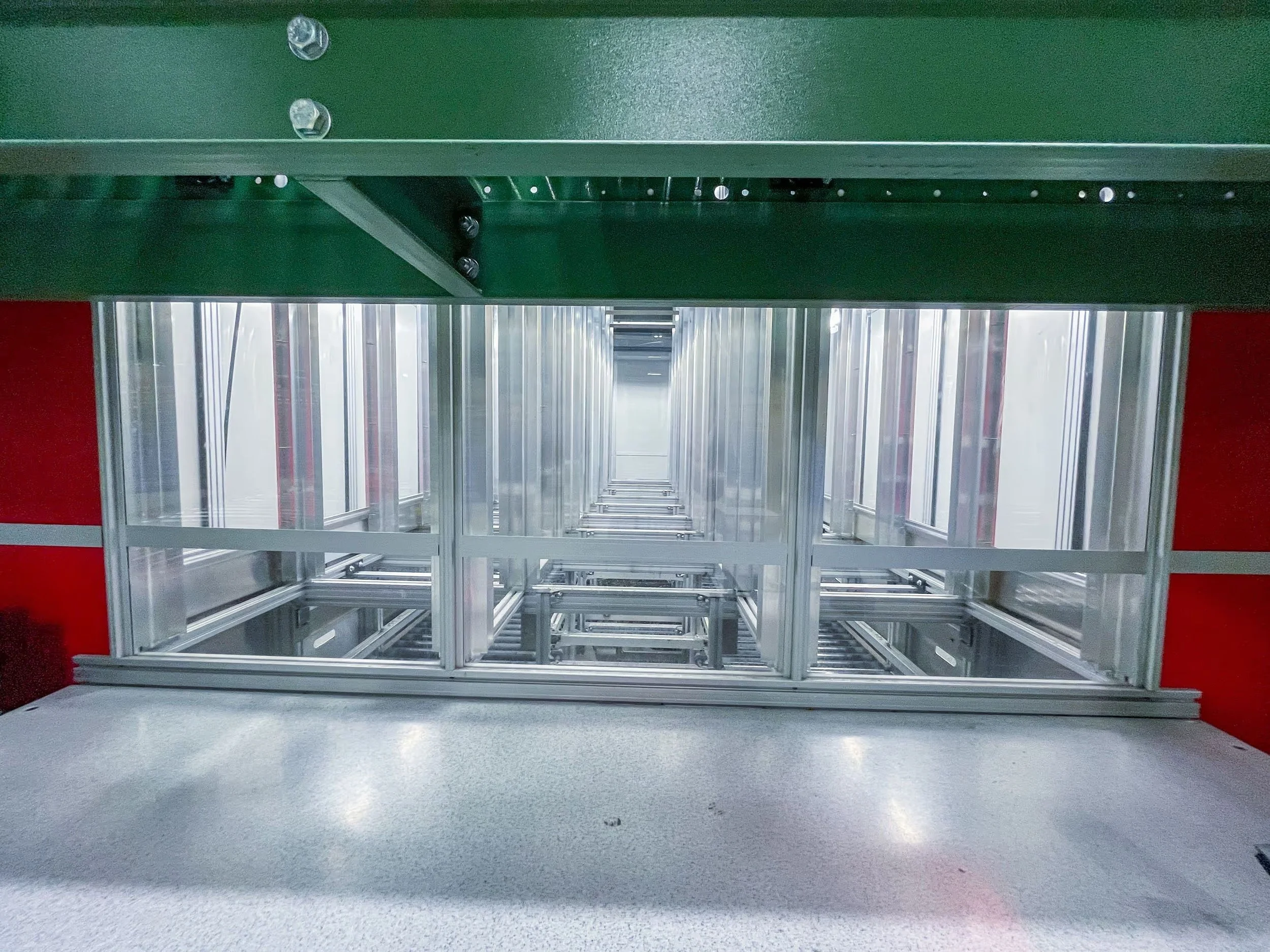

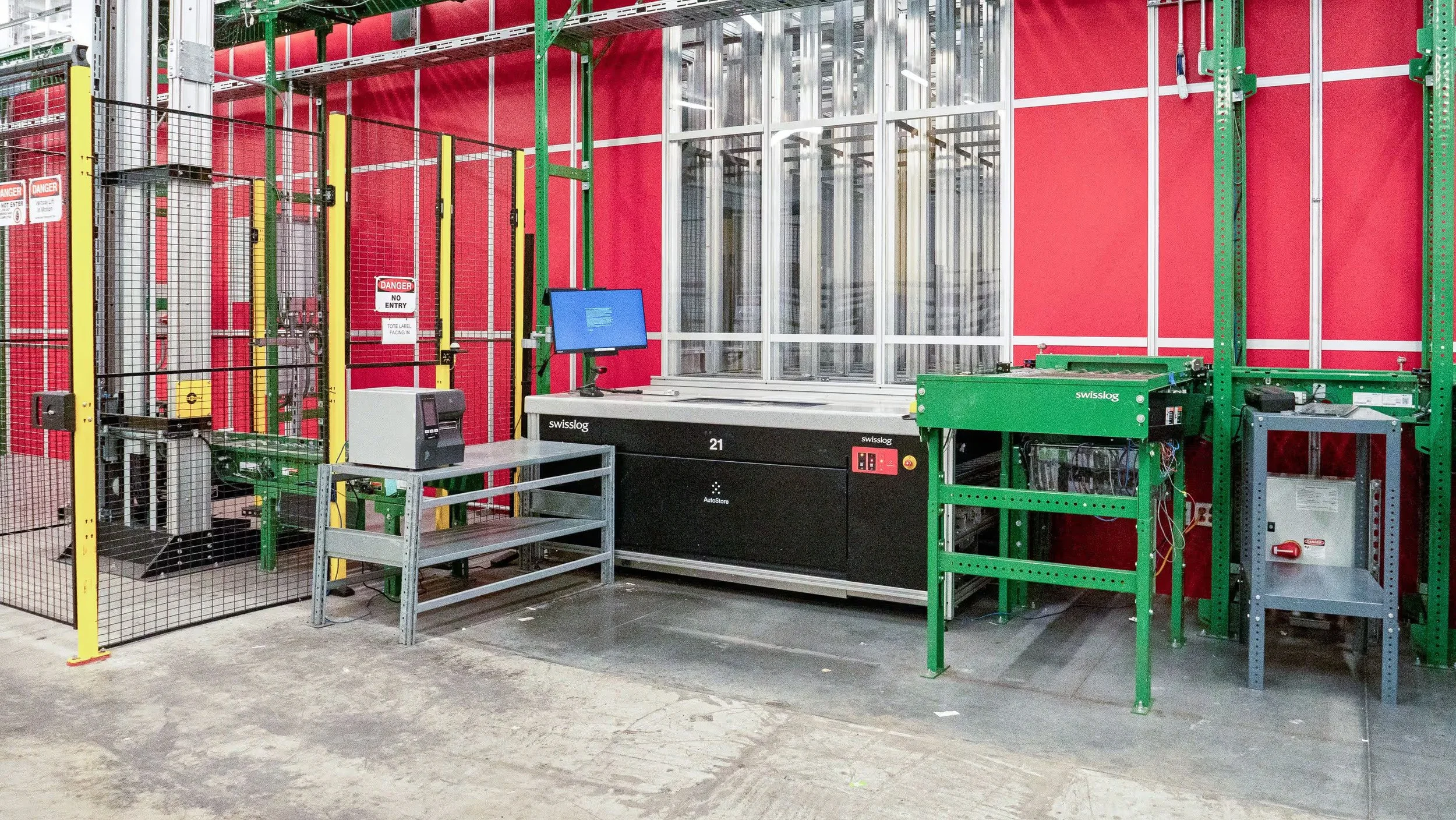

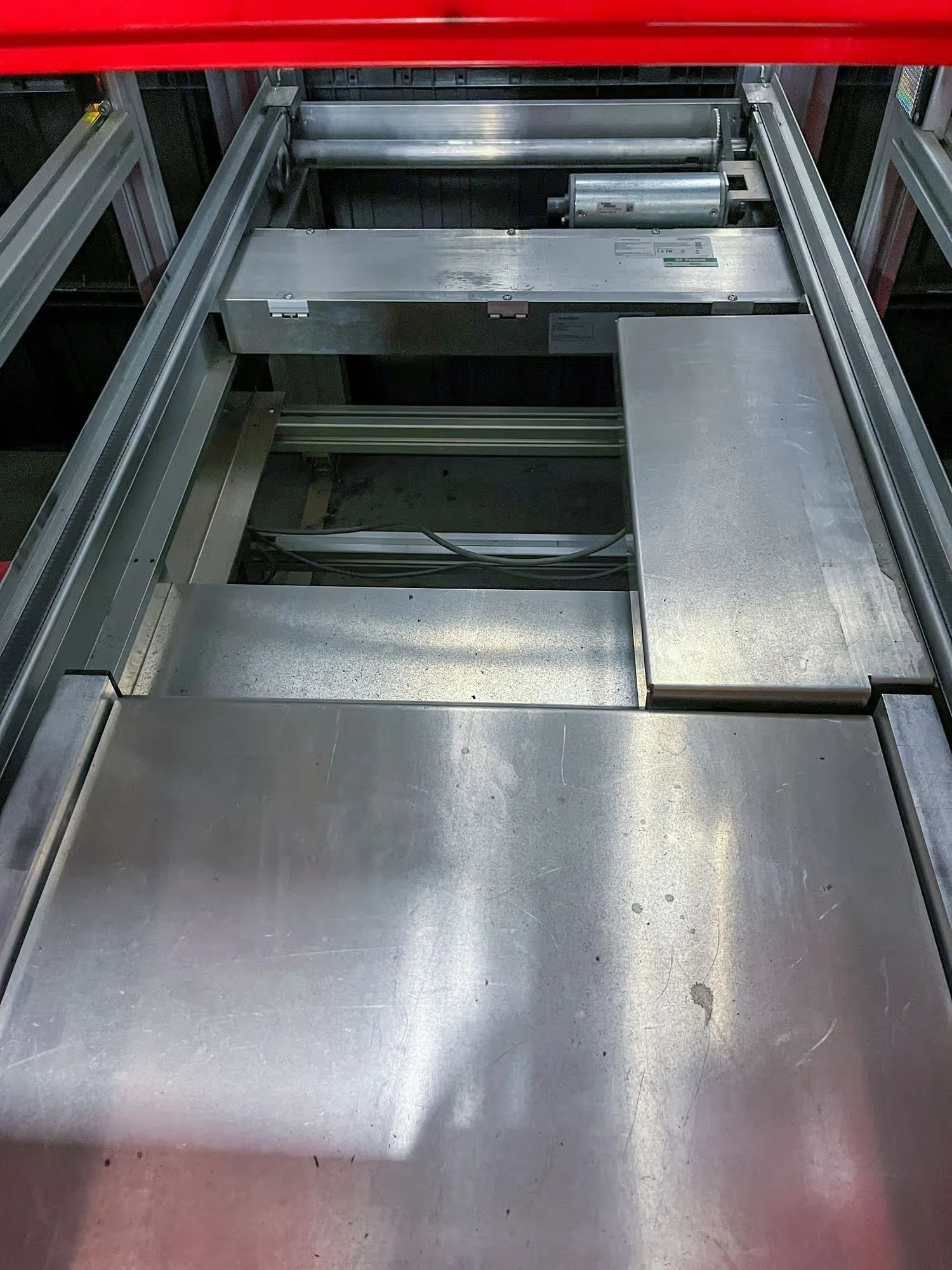

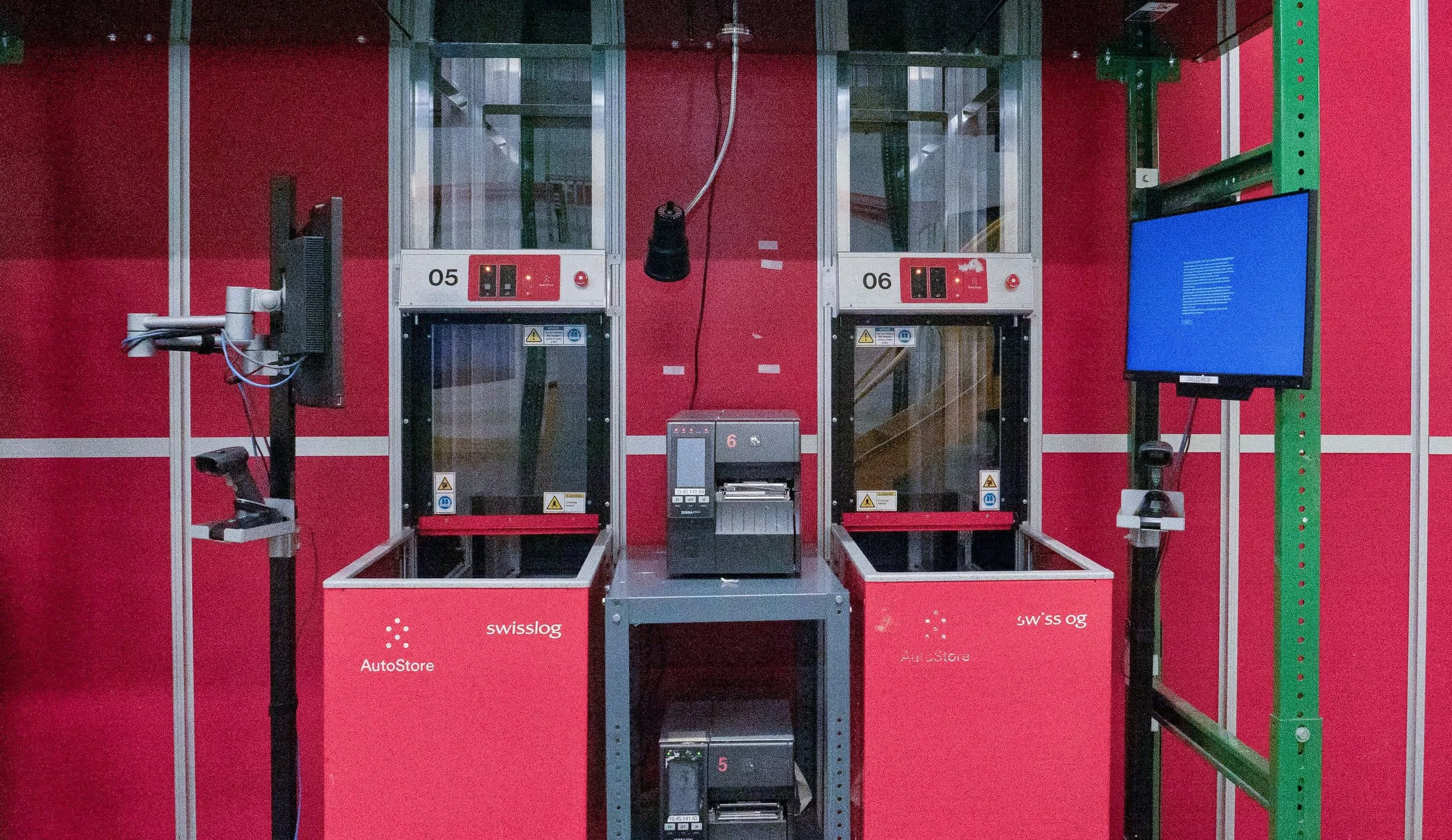

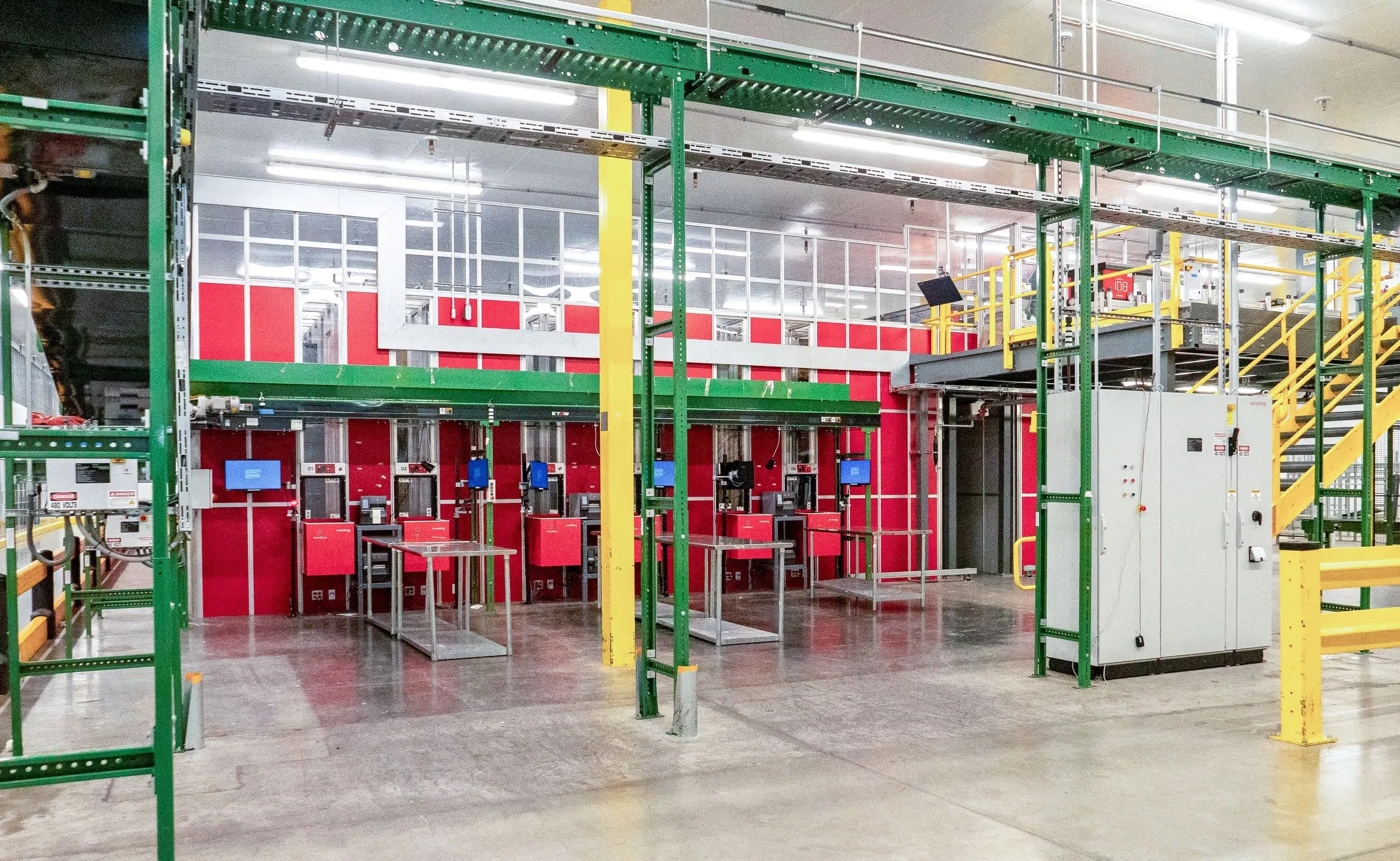

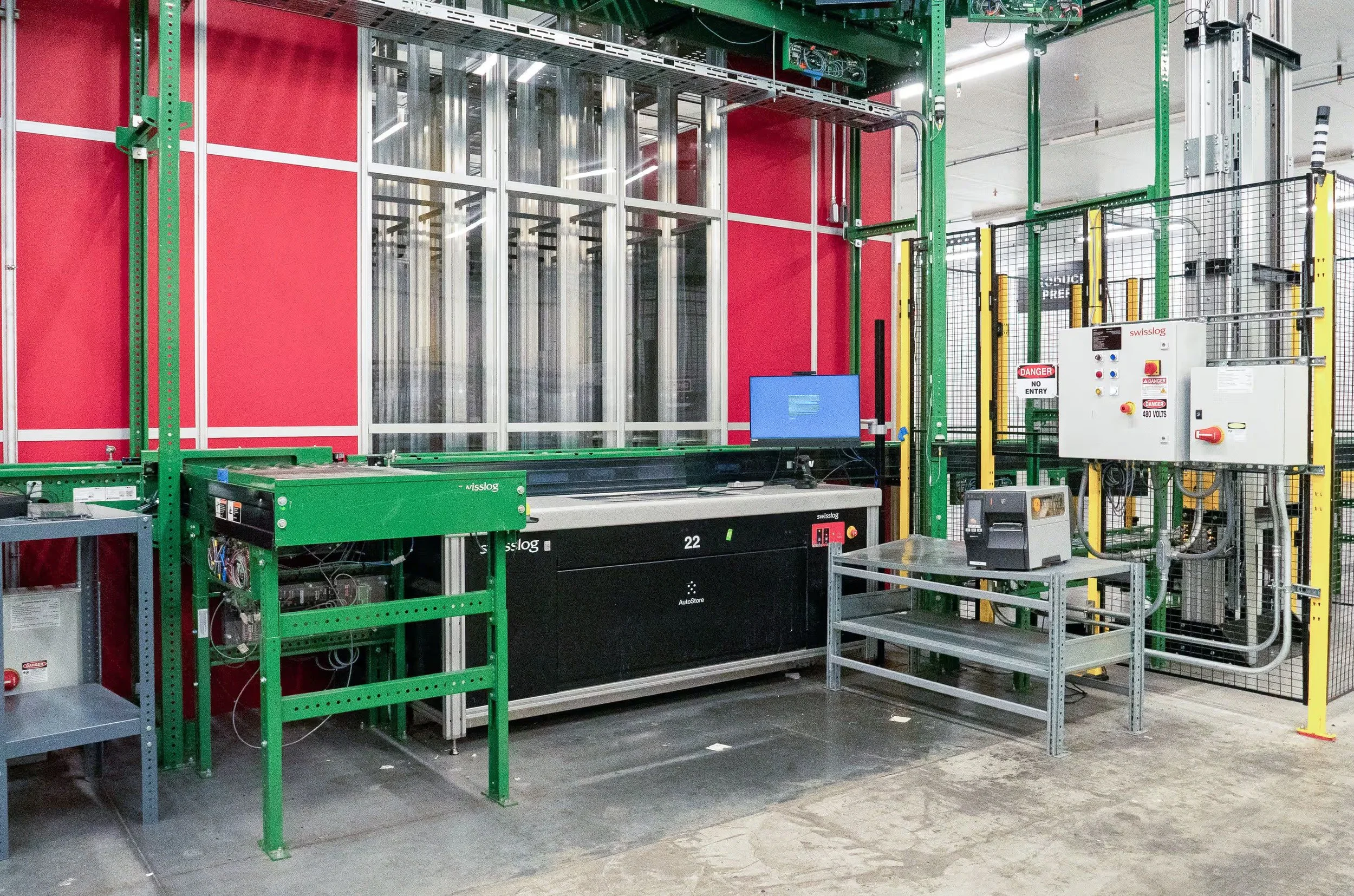

Total ports	11

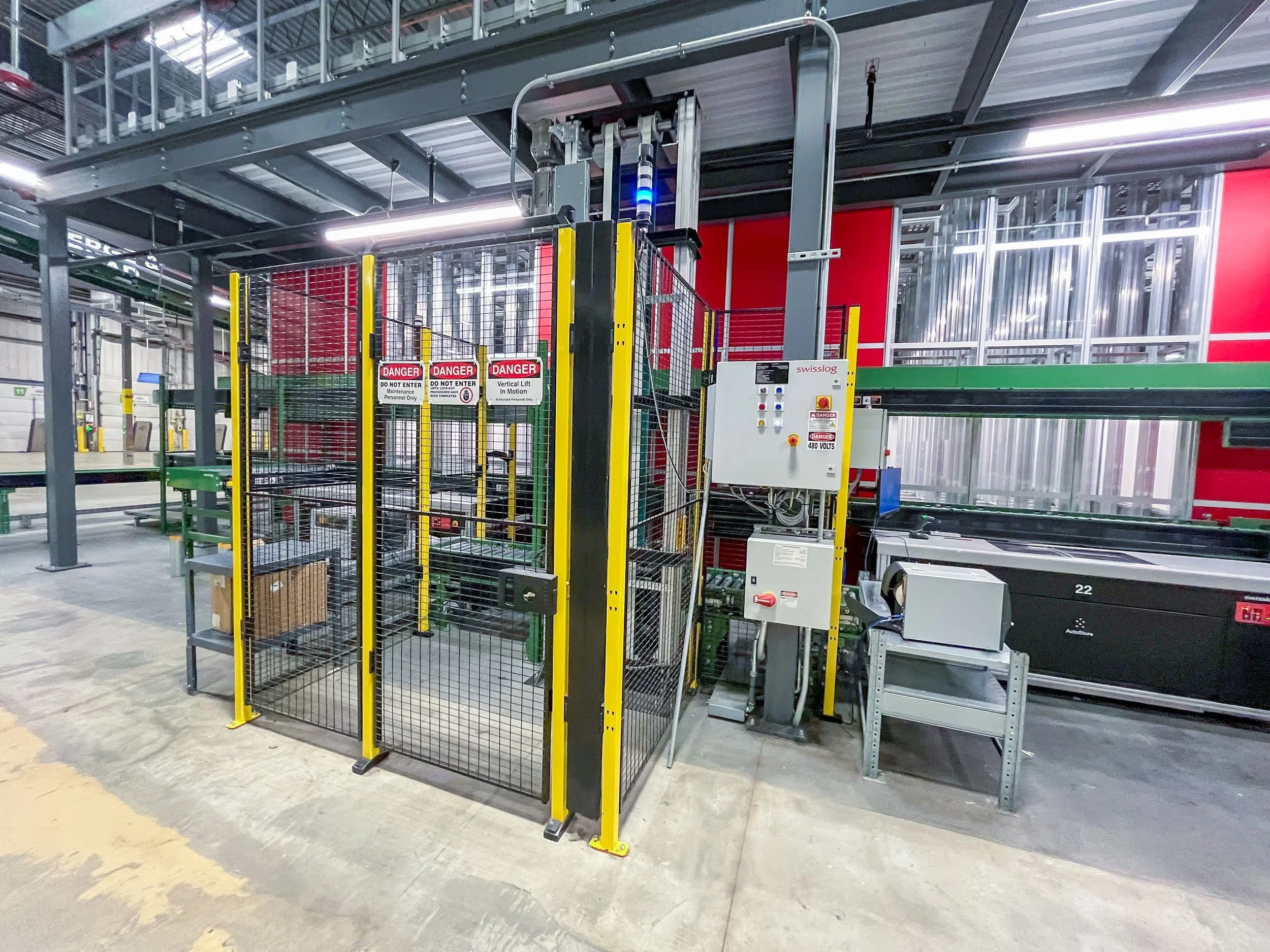

Relay Ports	3

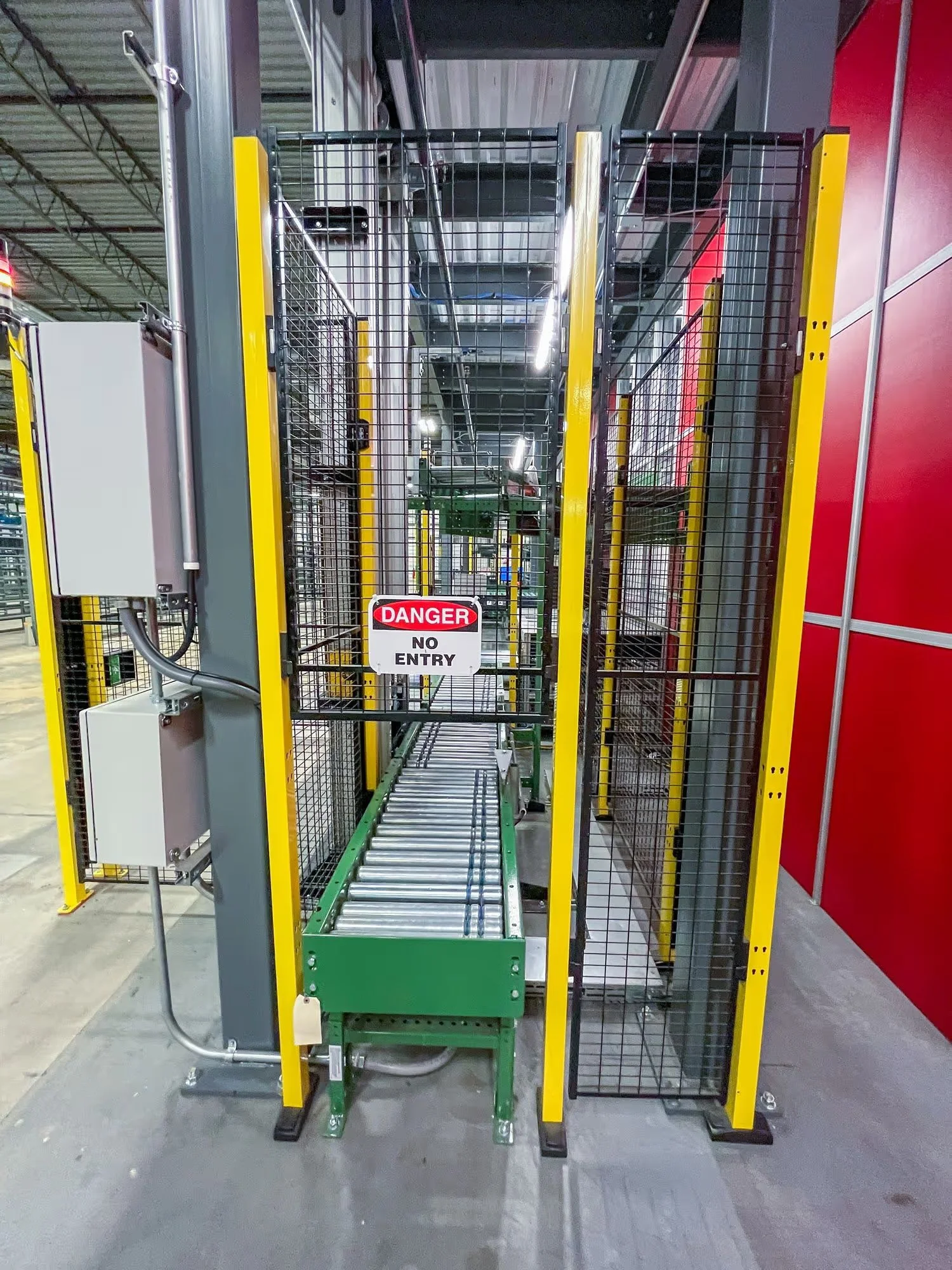

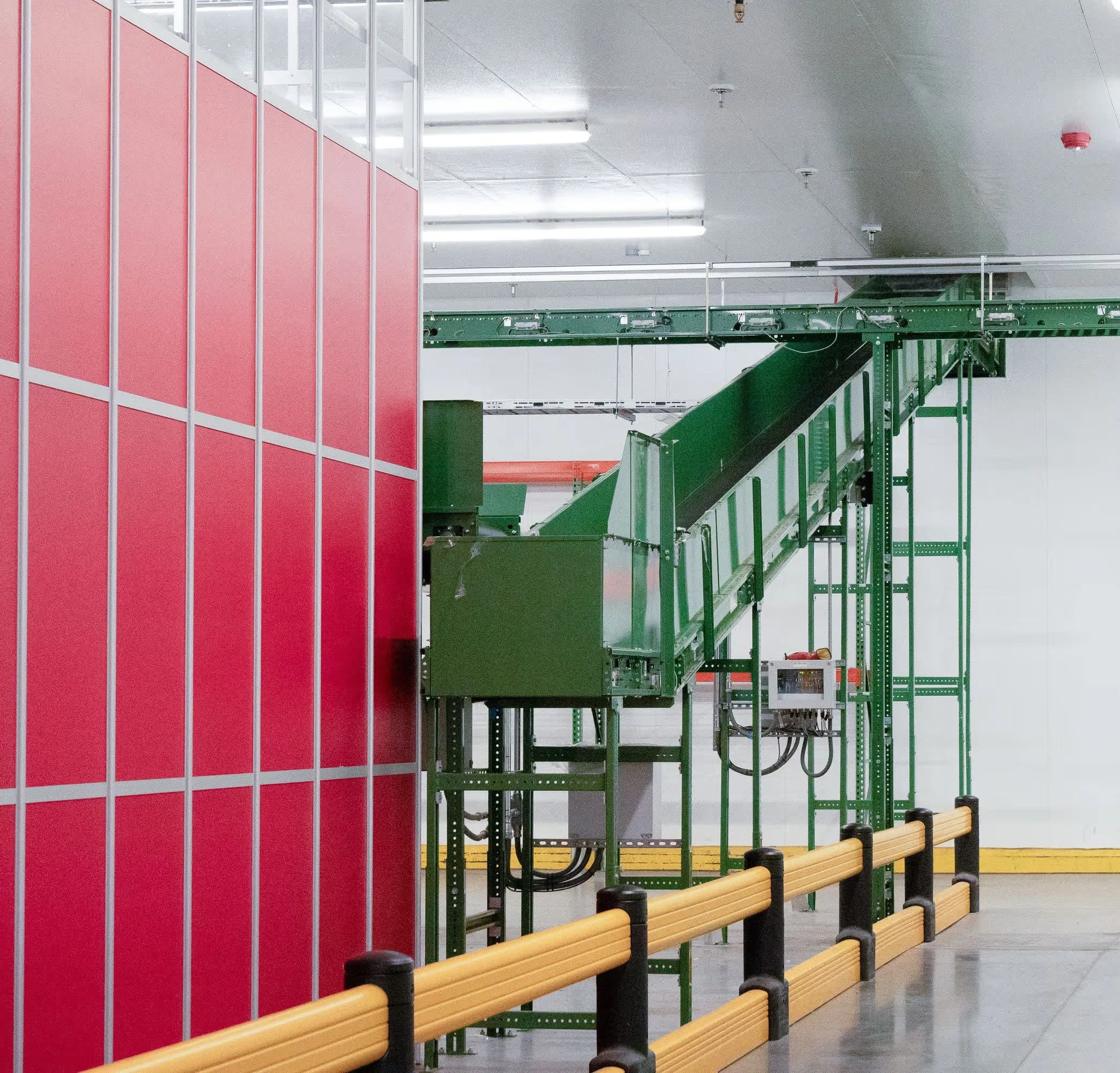

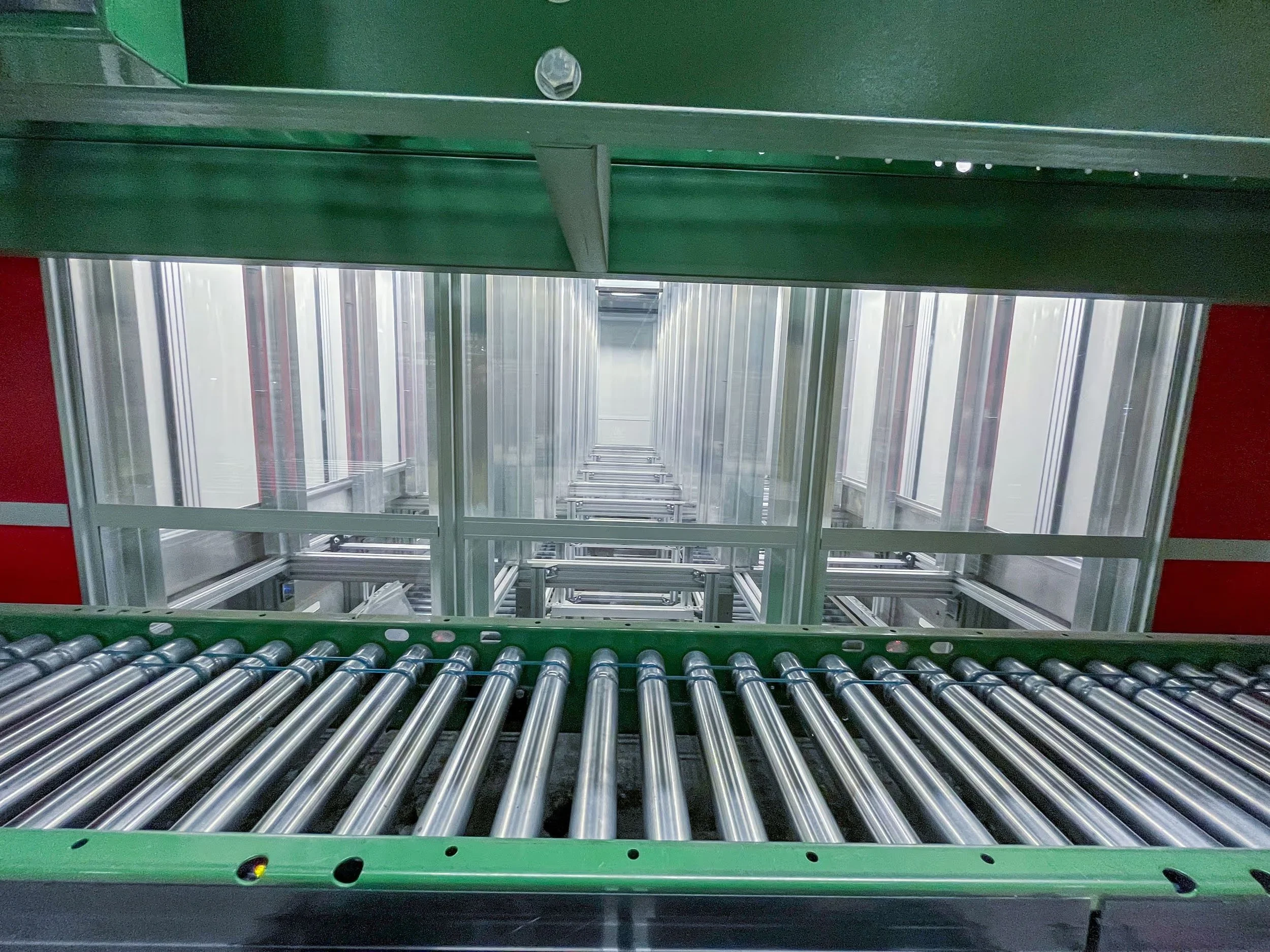

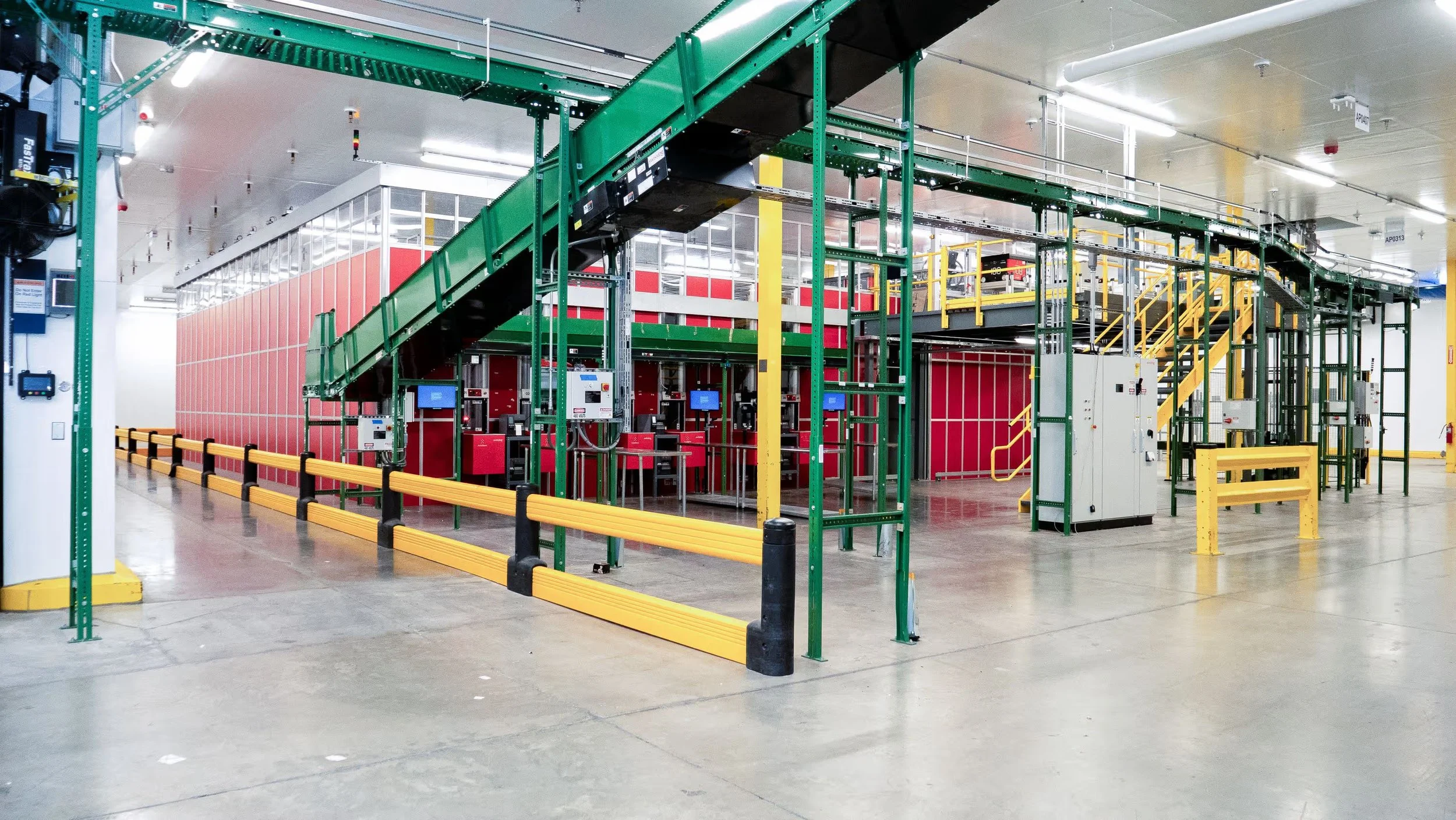

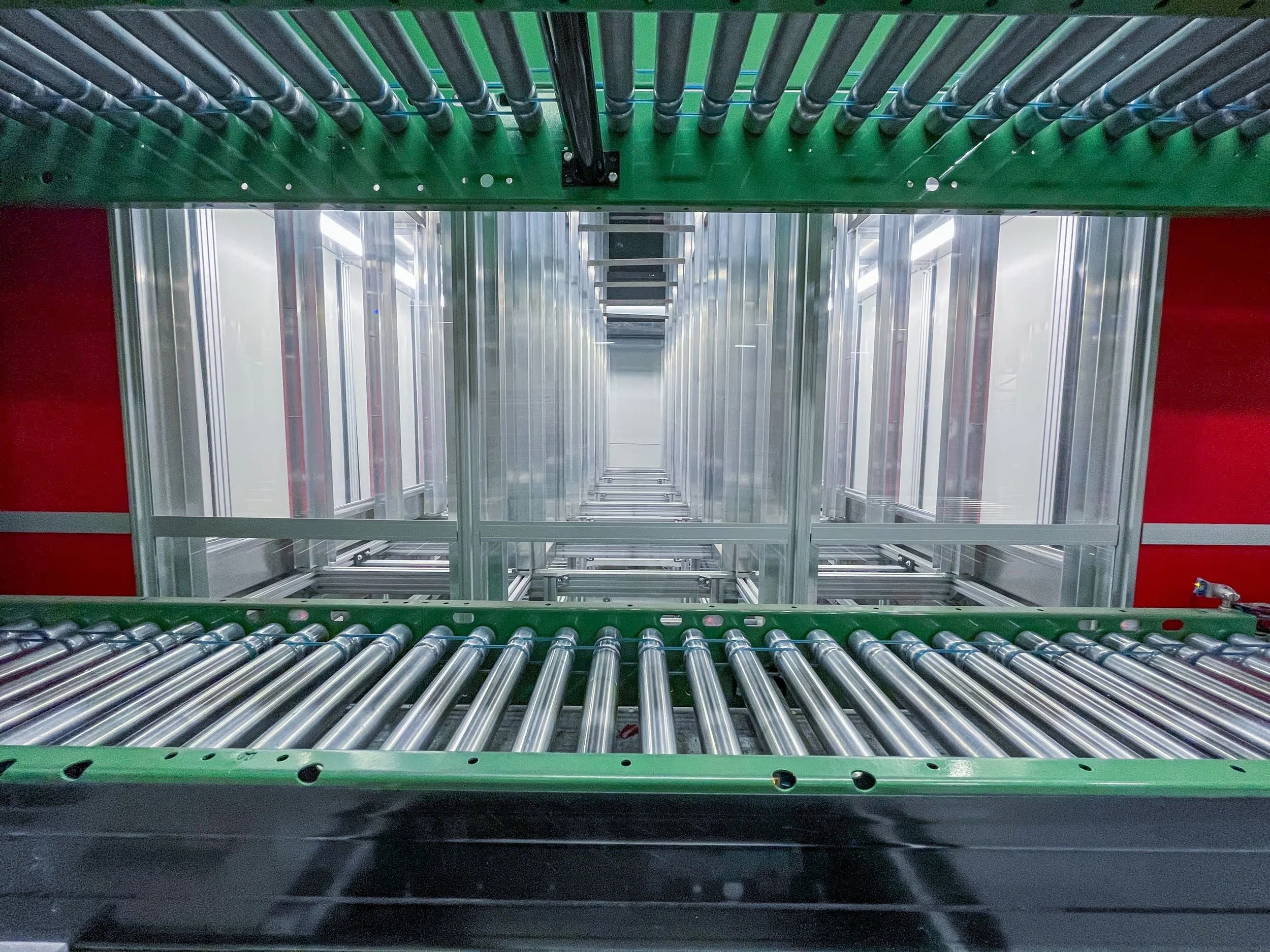

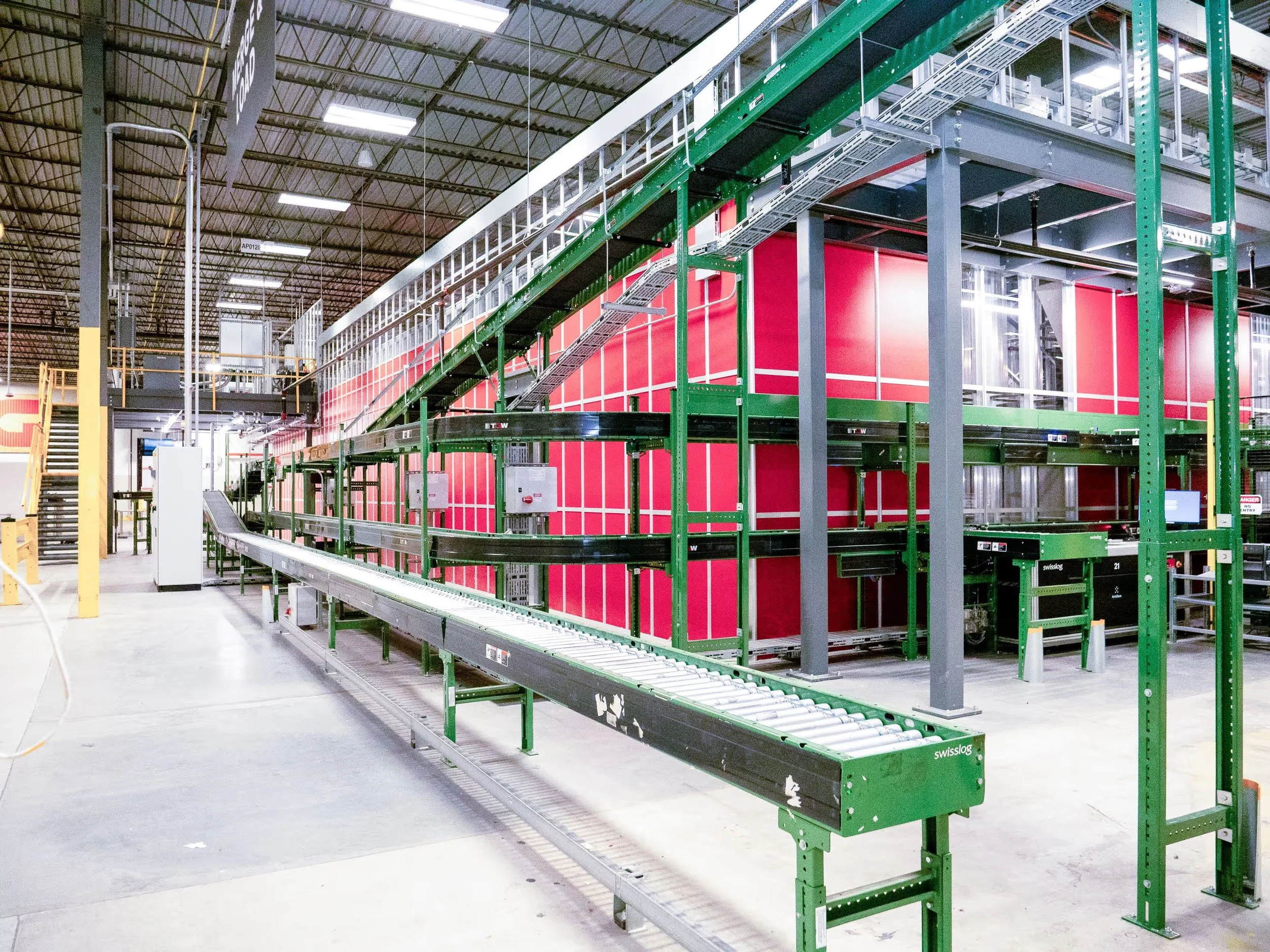

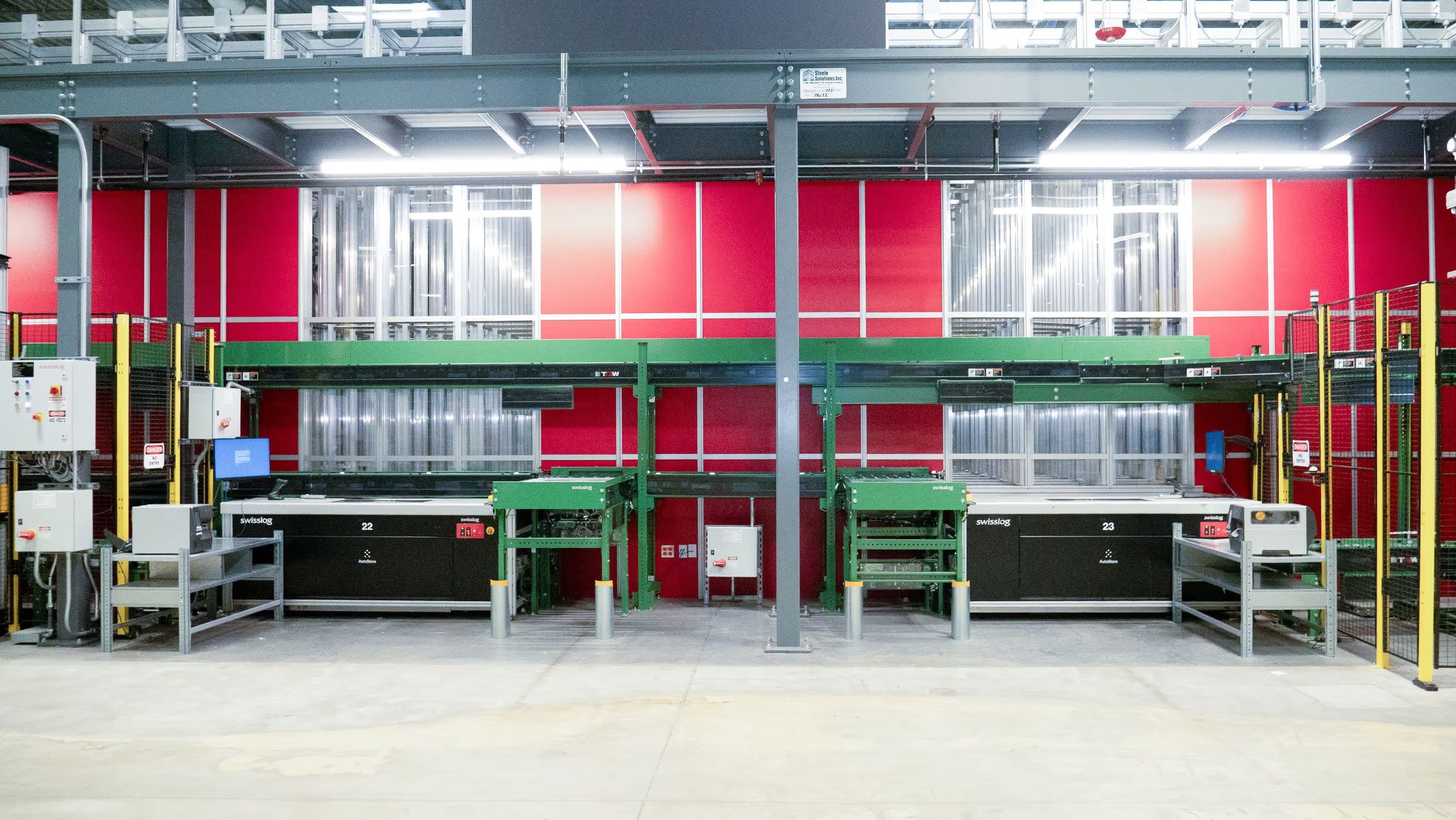

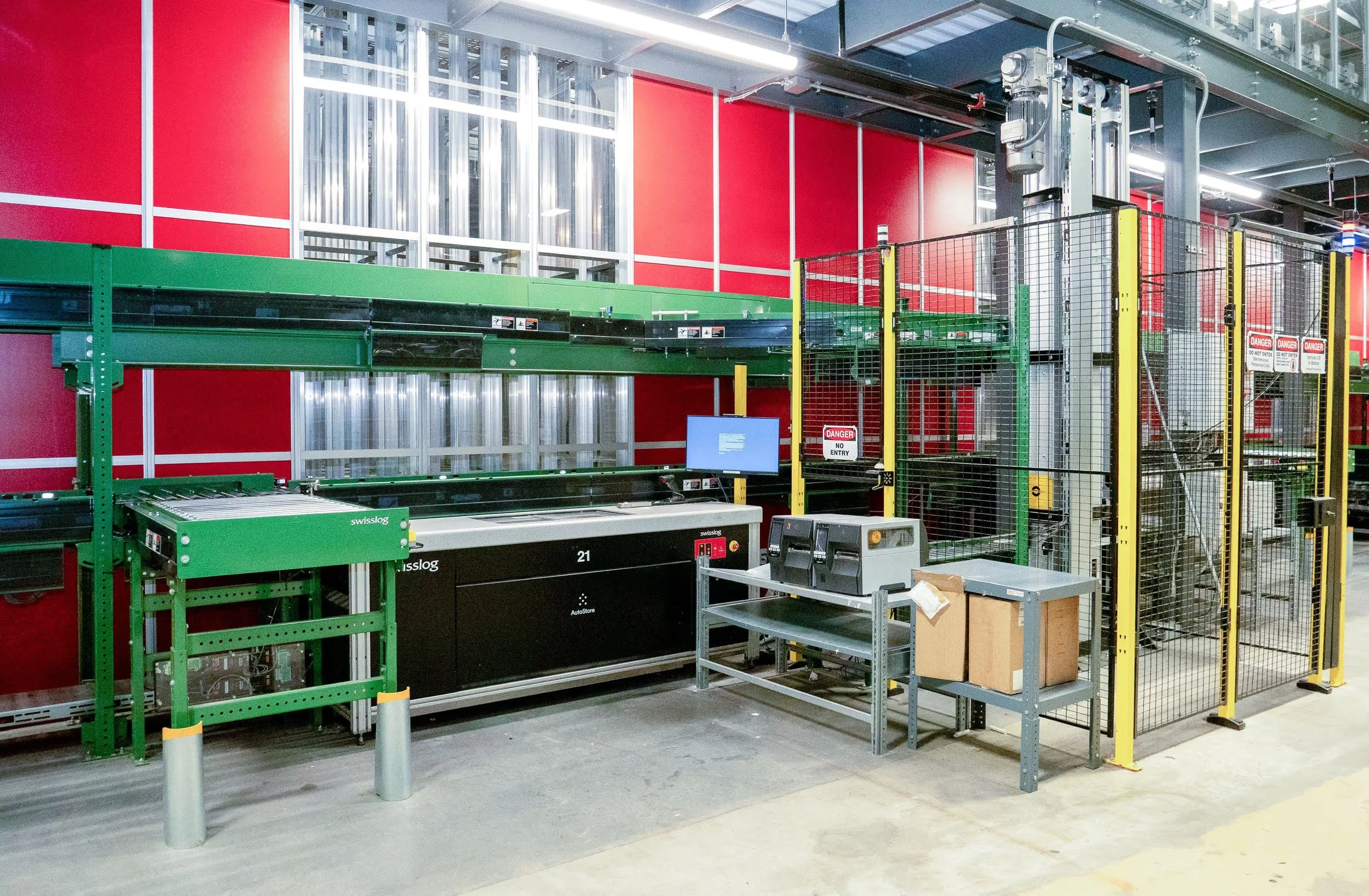

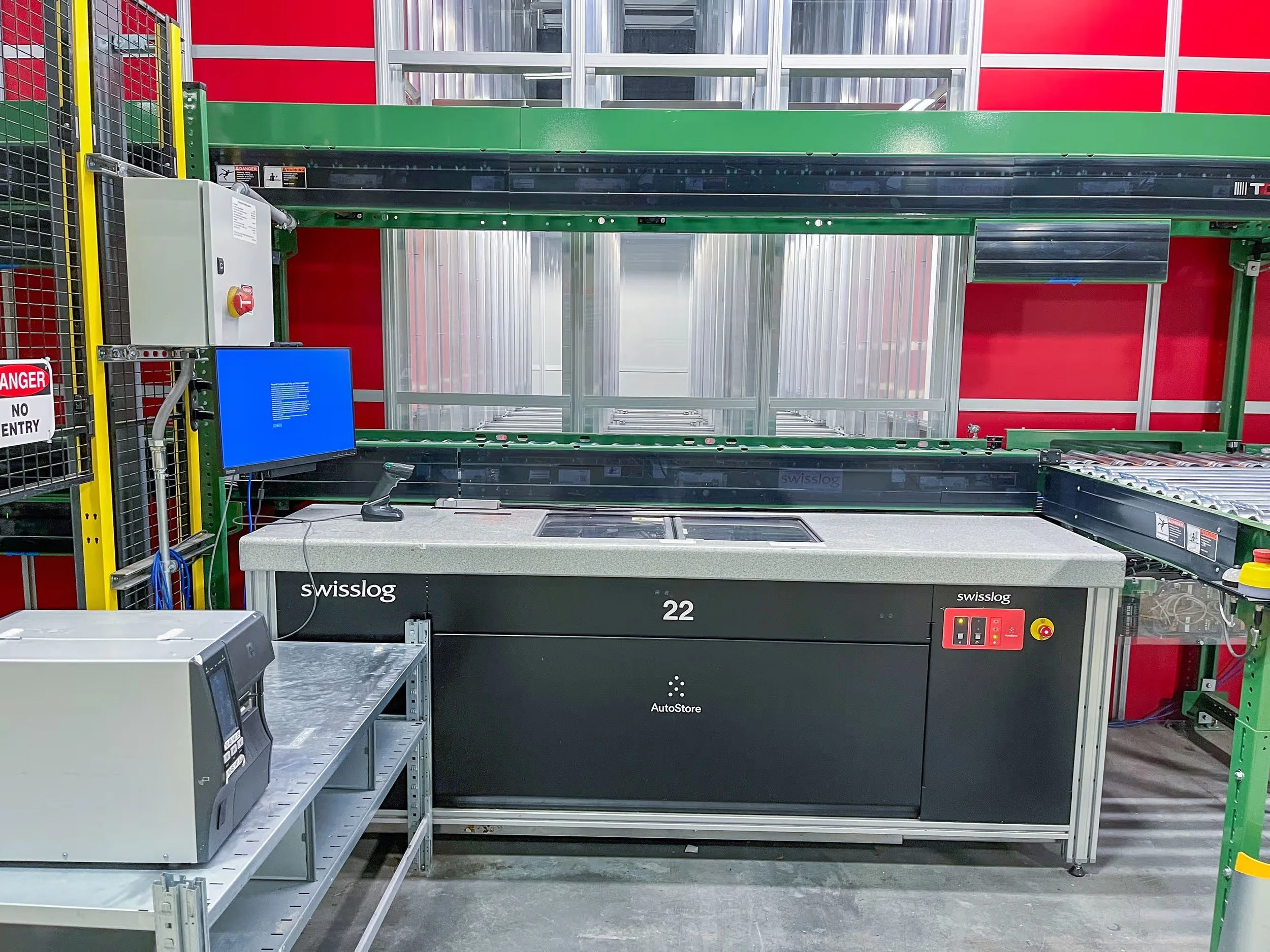

Conveyor Ports	8

Important information:
Costs for dismantling, transportation, reinstallation, commissioning, integration, and any required upgrades are additional.

Contact us for further information, drawings, configuration details, and to discuss whether this system is suitable for your operation.
